Brainboxes PX-313 - 2 x RS422/485 PCI Express Serial Port Card





PCI Express Card providing two RS422/485 serial ports. Up to 921,600 data transfer rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.

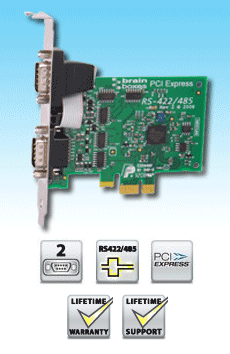

Features



Product Features
  • 2 Port RS422/485 Serial Card
  • PCI Express Technology suitable for Servers and Desktop PCs
  • Up to 921,600 data rate
  • 128 Byte Transmit and Receive FIFO
  • Drivers for all popular operating systems
  • Lifetime Warranty and Support

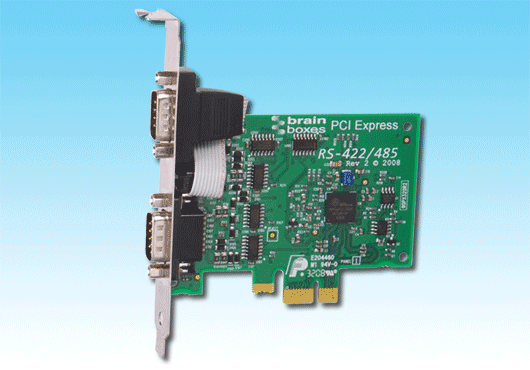

PX-313 Product Picture

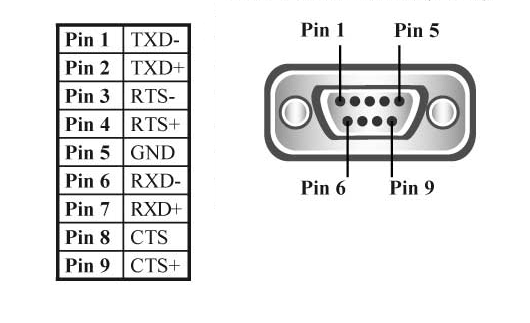

RS422/485 Pinout (9 pin)

Operating System Compatibility
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows Server 2003 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000

Interface

PCI Express x1, x4, x8 & x16 lane slots

PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant




Ordering Information...




Brainboxes PX-313 - 2 x RS422/485 PCI Express Serial Port Card
PCI Express Card providing two RS422/485 serial ports.
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-313
Quantity Price (GBP) [Excl. VAT]
1 and above 170.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes PX-313 - 2 x RS422/485 PCI Express Serial Port Card
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-313
Availability:  0 in stock
7 days delivery
Price:   170.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
