Brainboxes US-346 - 4 Port RS422/485 USB to Serial Server





USB to Serial server providing four RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC.

Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8 with additional drivers for both Mac OS X and Linux




Features



US-346 Product Features
  • 4 Port RS-422/485 USB to Serial Server
  • 128 Byte Tx and 384 Byte Rx FIFOs
  • Up to 921,600 Baud
  • DB9 Connector - 9 Pin Male connector (9 Pin Male)
  • IP-30 rated enclosure
  • Drivers for all popular operating systems
  • LED status indication
  • Supplied with USB cable
  • Supplied with rubber feet for office environment
  • Optional DIN rail mounting kits
  • Lifetime Warranty* and Lifetime Support

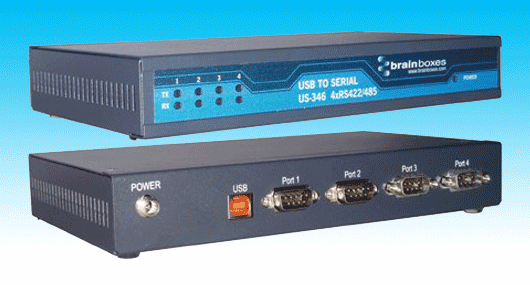

US-346 Product Pictures

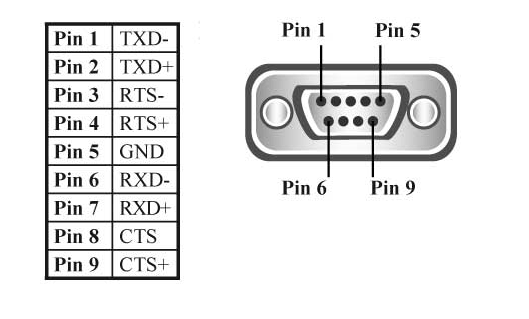

US-346 RS422/485 Pinout (9-pin)

Operating System Compatibility
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Mac OS X
  • Windows Server 2003 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Linux

Interface

USB 2.0 480 Mb/s USB 2.0 data rates.




Ordering Information...




Brainboxes US-346 - 4 Port RS422/485 USB to Serial Server
USB to Serial server providing four RS422/485 serial ports.
Manufacturer:  Brainboxes
Order Code:  BRAIN-US-346
Quantity Price (GBP) [Excl. VAT]
1 and above 206.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes US-346 - 4 Port RS422/485 USB to Serial Server
Manufacturer:  Brainboxes
Order Code:  BRAIN-US-346
Availability:  0 in stock
7 days delivery
Price:   206.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
