Brainboxes PX-387 - 1 x RS422/485 PCI Express Serial Port Card With Opto Isolation





PCI Express Card providing one opto isolated RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmitand 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.




Features



PX-387 Product Features
  • 1 port RS422/485
  • PCI Express x1, x4, x8 x16 lane slots socket size
  • 128 Byte Tx and 128 Byte Rx FIFOs
  • Up to 921,600 Baud
  • DB9 connector (9 Pin Male)
  • Drivers for all popular operating systems
  • Sample Programs, Test & Terminal software
  • Lifetime Support
  • Lifetime Warranty (registration required)

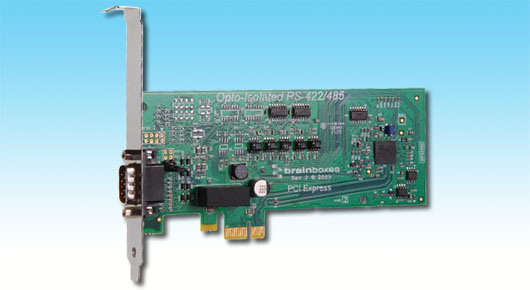

PX-387 Product Picture

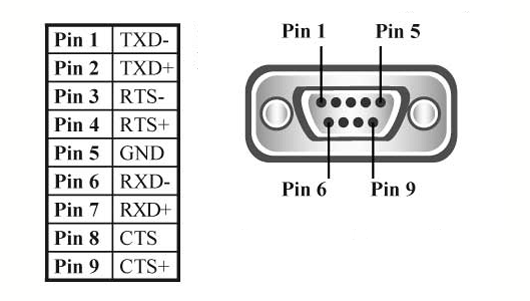

Opto Isolated RS422/485 Pinout (9-pin)

Operating System Compatibility
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows Server 2003 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000

Interface

PCI Express x1, x4, x8 & x16 lane slots

PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.




Ordering Information...




Brainboxes PX-387 - 1 x RS422/485 PCI Express Serial Port Card With Opto Isolation
PCI Express Card providing one opto isolated RS422/485 serial port.
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-387
Quantity Price (GBP) [Excl. VAT]
1 and above 110.00

Availability:
1 in stock
Product Information
Product:  Brainboxes PX-387 - 1 x RS422/485 PCI Express Serial Port Card With Opto Isolation
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-387
Availability:  1 in stock
Price:   110.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
