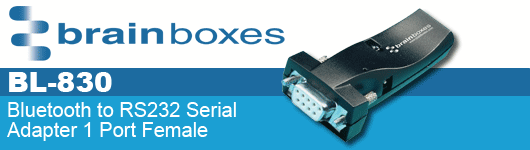

Brainboxes BL-830 - Bluetooth to RS232 Serial Adapter 1 Port Female |
|
|
|
|
|
| |
Compact, Award winning Brainboxes RS232 Adaptor (female connector) allows any device with an RS232 port to communicate with another Bluetooth device without the need for any additional software. Ideal for Bluetooth enabling 'dumb' RS232 devices such asdataloggers etc. with option to power from Pin 9. Based onfully tested Bluetooth silicon, allowing communications at thefull Bluetooth rates. Integral antenna.
|
| |
|
|
 |
BL-830 Features |
|
- 1 Port Female RS-232 Bluetooth to Serial Adapter
-
Data rate from 110 to 921,600 baud
-
Optional Power on Pin 9
-
Suitable for ANY device with a serial port
-
Range, Field: 30m, Office: 10m
-
Lifetime Support
-
3 Year Warranty
|
|

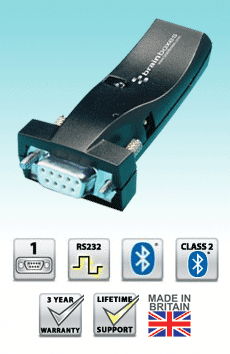

BL-830 Product Picture |
|
|
|
|
BL-830 RS232 Pinout (9-pin female) |
|
|
|
|
Operating System Compatibility |
|
- Suitable for any device with Serial Port
|
|
Interface |
|
|
|
|
Typical Product Applications |
|
- Bluetooth enable barcode scanners
-
Making medical test equipment with RS232 interface wireless via Bluetooth.
-
Getting data from a Waterville Analytical flow injection analysis instrument
-
Electric vehicle control units
-
To access 3rd party products via bluetooth
-
Connect to serial ports on Cisco routers and switches
-
Connect Yaesu FT-847 Ham Radio to Windows 7 notebook using a Bluetooth Serial adaptor
|
| |
|  |
|
