Brainboxes PX-310 - 2 Port RS422/485 PCI Express Serial Card With Opto Isolation





PCI Express Card providing two opto isolated RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmitand 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Optical isolation provides greater protection from electrical current surges to both the card itself and the PC. It improves noise immunity by isolating the PC from the card’s transmit ground. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7 and Windows 8.





Features

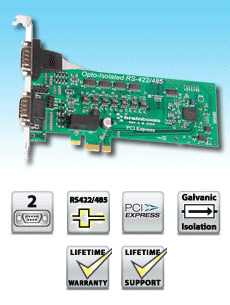

PX-310 Product Features
  • 2 port RS422/485
  • PCI Express x1, x4, x8 x16 lane slots socket size
  • 128 Byte Tx and 128 Byte Rx FIFOs
  • Up to 921,600 Baud
  • DB9 connector (9 Pin Male)
  • Drivers for all popular operating systems
  • Sample Programs, Test & Terminal software
  • Lifetime Support
  • Lifetime Warranty (registration required)

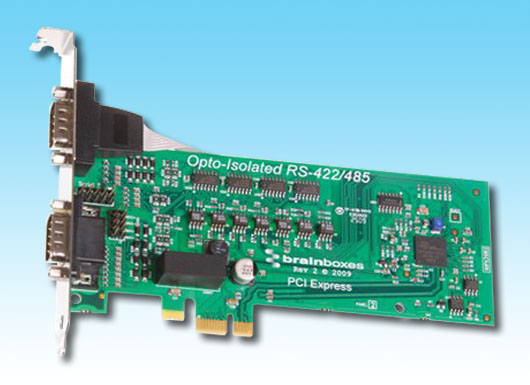

PX-310 Product Picture

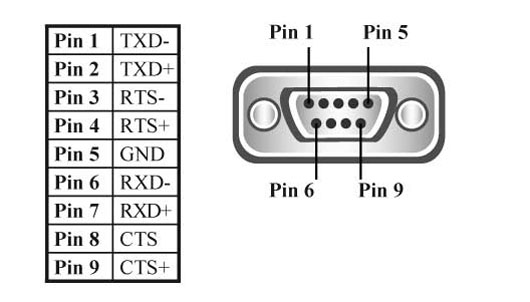

PX-310 Opto Isolated RS422/485 Pinout (9-pin)

PX-310 Operating System Compatibility
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows Server 2003 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • Microsoft Windows 2000

PX-310 Interface

PCI Express x1, x4, x8 & x16 lane slots

PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.





Ordering Information...




Brainboxes PX-310 - 2 Port RS422/485 PCI Express Serial Card With Opto Isolation
PCI Express Card providing two opto isolated RS422/485 serial ports.
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-310
Quantity Price (GBP) [Excl. VAT]
1 and above 220.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes PX-310 - 2 Port RS422/485 PCI Express Serial Card With Opto Isolation
Manufacturer:  Brainboxes
Order Code:  BRAIN-PX-310
Availability:  0 in stock
7 days delivery
Price:   220.00 (GBP)
 [Excl. VAT]
