Brainboxes PM-154 - 1 Port RS422/485 PCMCIA with ruggedised integrated cable |
|
|
|
|
|
| |
PC Card providing one ruggedised RS422/485 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 95/98/2000, XP, Server 2003, Vista, Server 2008 and Windows 7.
|
| |
|
|
 |
PM-154 Product Features |
|
- 1 port RS422/485
-
PCMCIA socket size
-
128 Byte Tx and 128 Byte Rx FIFOs
-
Up to 921,600 Baud
-
DB9 connector (9 Pin Male)
-
Drivers for all popular operating systems
-
Sample Programs, Test & Terminal software
-
Lifetime Support
-
Lifetime Warranty (registration required)
|
|

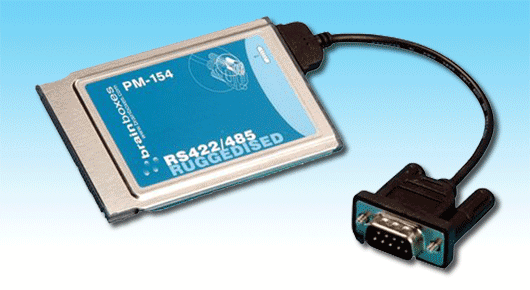

PM-154 Product Picture |
|
|
|
|

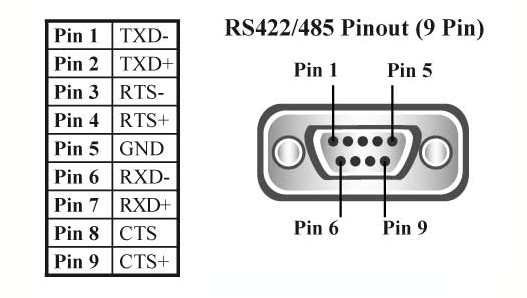

PM-154 Pinout |
|
|
|
|
PM-154 Interface |
|
|
PCMCIA (Personal Computer Memory Card International Association) is an international standards body and trade association with over 100 member companies that was founded in 1989 to establish standards for Integrated Circuit cards and to promote interchangeability among mobile computers where ruggedness, low power, and small size were critical.
|
| |
|  |
|
View Downloads for this Product
