Generates a very accurate ‘Calibration frequency’ (39.0625 kHz) for use during the ‘XTAL calibration’ procedure of a Silicon Labs Z-Wave 500 series devices and modules.
The ‘Calibration frequency’ can be switched to the target device under external programmer control
Very high accuracy temperature-compensated OXCO module guarantees correct frequency for calibration.
Integrated 9V to 3.3V switch-mode power supply - the module powers from a standard Equinox 9.0V supply (same as ISPnano programmer)
The ‘Programmer - SPI - SCK’ signal is fully buffered using a ‘Clock buffer’ circuit on the IOMOD14 module.
Supports programming of external ‘SPI FLASH memory’ devices due to buffered ‘Programmer - SPI - SCK’ signal.
Programmable ‘RESET_N’ frequency @ 500 Hz for keeping Z-Wave device in reset when programming an external ‘SPI FLASH memory’ device.
Chip Select (CS) control line available for interfacing to external NVM serial memory device.
Quick-connect connectors for connecting programmer I/O pins to target board
Full ESD protection on ‘Calibration frequency’ and ‘SCK’ output pins

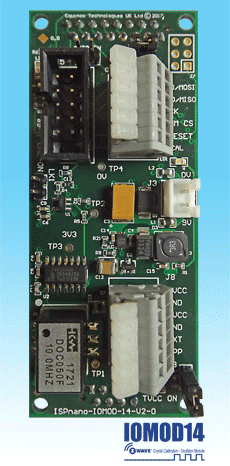

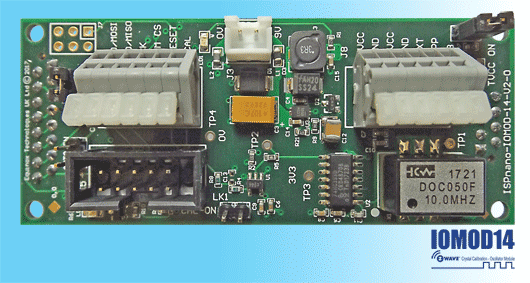

Main Product Picture
Associated Programmers
Click on the picture of a programmer to view the full programmer description page.
Ordering Information...
ISPnano IOMOD14-KIT - Z-Wave Crystal Calibration - Oscillator Module
This Connector Module for the ISPnano Series 4 and ISPnano-MUX programmers is an Oscillator Calibration Module used for accurate XTAL calibration of Sigma Z-Wave 500 series devices. This is the FIXED frequency version.
