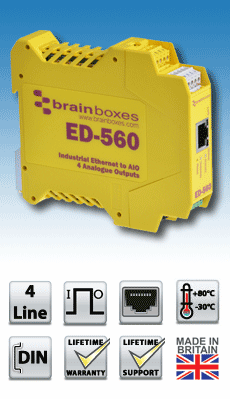

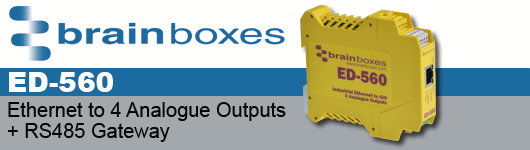

ED-560 - Ethernet to 4 Analogue Outputs + RS485 Gateway





The ED-560 has 4 Analogue Outputs + RS485 Expansion. It is suitable for high-precision control of voltages and currents.
As well as the popular 0-10V and 4-20mA input devices, allowing full scale signals as small as 75mV to be resolved to 12 bit accuracy across 4 analogue outputs. Each channel is individually configurable for voltage or current output with its own programmable gain.The device installs as a COM Port on a Windows PC to give complete backwards compatibility essential for legacy applications. From other platforms and operating systems the device can be controlled over TCP/IP. Additionally Brainboxes supply a suite of APIs and sample code to communicate with the ED device using Microsoft .NET framework, C++, Java, Javascript, PHP and more.

The device and be configured and secured from a web browser. The ED product range is designed for harsh environments. Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids.

Click to return




Features



Features
  • 8 Analogue Inputs
  • Analogue Inputs Isolated from Power, Network & Gateway
  • Great for process control applications
  • 4-20 mA current input - connect all types of sensors
  • -30C to +80C Temperature range
  • Integrated DIN rail mount




Ordering Information...




ED-560 - Ethernet to 4 Analogue Outputs + RS485 Gateway
The ED-560 has 4 Analogue Outputs + RS485 Expansion. It is suitable for high-precision control of voltages and currents.
Manufacturer:  Brainboxes
Order Code:  BRAIN-ED-560
Quantity Price (GBP) [Excl. VAT]
1 and above 319.50

Availability:
1 in stock


Product Information
Product:  ED-560 - Ethernet to 4 Analogue Outputs + RS485 Gateway
Manufacturer:  Brainboxes
Order Code:  BRAIN-ED-560
Availability:  1 in stock
Price:   319.50 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
