Brainboxes PX-157 - Parallel Port Printer Low Profile PCI Express Card |
|
|
|
|
|
| |
PCI Express card provides an industry standard 25 pin LPT port on a low profile connector. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.
PCI Express is the latest standard in PC connectivity. PX-146 - Standard profile version; PX-157 - Low Profile version.
With Brainboxes industry renowned Lifetime Warranty and Lifetime Support!
|
| |
|
|
 |

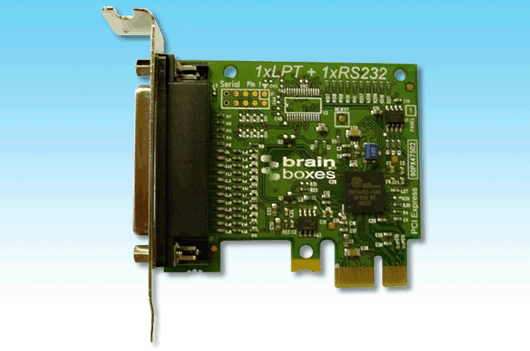

PX-157 Product Picture |
|
|
|
|
PX-157 Features |
|
- 1xLPT Printer
-
PCI Express x1, x4, x8 x16 lane slots socket size
-
Drivers for all popular operating systems
-
Sample Programs, Test & Terminal software
-
Lifetime Support
-
Lifetime Warranty (registration required)
|
|

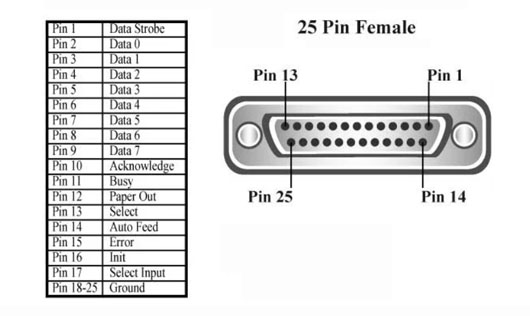

PX-157 Pinout Picture |
|
|
|
|
Operating System Compatibility |
|
- Microsoft Windows 10
-
Microsoft Windows 8 32 bit & 64 bit Editions
-
Microsoft Windows 7 32 bit & 64 bit Editions
-
Windows Server 2008 32 bit & 64 bit Editions
-
Windows Vista 32 bit & 64 bit Editions
-
Windows XP 32 bit & 64 bit Editions
|
|
Interface |
|
|
PCI Express x1, x4, x8 & x16 lane slots
PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
|
| |
|  |
|
View Downloads for this Product
