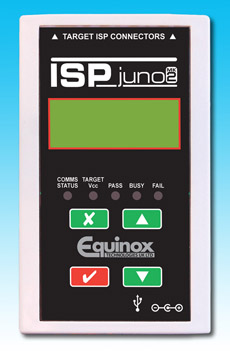

Main Features |
|
|
● Portable In-System (ISP) Programmer supporting many popular ARM FLASH Microcontroller families
● Supports both the ARM Cortex 4-wire JTAG and 2-wire SWD (Single Wire Debug) programming interfaces
● Ideal for Field-service or Production programming applications
● Supports ‘Standalone Mode’ operation - no PC required after programmer has been configured with user projects
● Capable of storing up to 64 completely independent ‘Standalone Programming Projects’
● Supports programming of devices between 3.0V and 5.0V
● Interchangeable Target Interface Modules (TIM) available which interface to the target PCBA connector
● High-speed USB connection to the PC
● Programmer can be powered from: External power supply or External USB Power Pack
● Robust programmer design - all programmer I/O lines are fully ESD and over-voltage protected
|
|

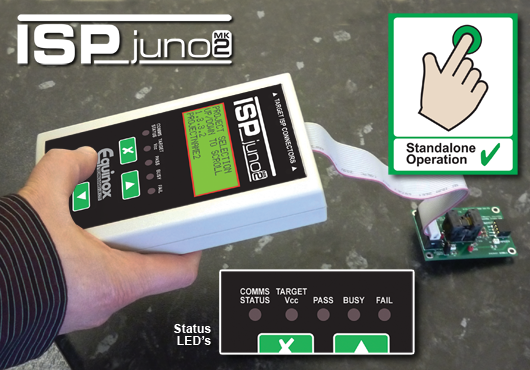

Standalone Mode operation |
|
|
|
|
Programming Interfaces |
|
|
● Supports both ARM Cortex 4-wire JTAG and 2-wire SWD (Single Wire Debug) programming interfaces
● An additional target-specific ISP 'Active Cable' or 'Target Interface Module (TIM)' may be required to support certain programming interfaces.
● Individually configurable programmer I/O pins
● All programmer I/O lines are fully ESD and over-voltage protected
● Supports programming of target ICs between 3.0 and 5.0V.
● Programmable frequency generator output on SCK2 pin - supports external clocking of some ARM microcontrollers during the programming process
|
|
Supported Programmer Control Methods |
|
|
The programmer supports the following control methods....
| Control method |
|
Control method overview |
Included as standard |
 |
Standalone Mode |
Keypad and LCD Display controlled (no PC) |
Included |
 |
Development Mode |
Controlled via PC Software - Equinox Development Suite (EDS) |
Included |
 |
Project Upload Mode |
PC Controlled - Project Upload Wizard utility |
Included |
 |
ASCII Text Communications Protocol |
USB VCP Serial control - chargeable upgrade |
UPGRADE |
 |
ConsoleEDS |
Console control application |
UPGRADE |
|
|
Target ISP Connectors |
|
|
|
|
Power and USB connectors |
|
|
|
|
Equinox Warranty |
|
|
|
|
Approvals |
|
|
|
|
Device Support Overview (Device Libraries) |
|
|
| This product supports selected devices from the families listed below: |
| (Not all devices in a family are supported - please see the Device Support list.) |
Atmel Corporation:
- AT91SAM7A - ARM7 FLASH Microcontroller
- AT91SAM7L (Low Power) Series - ARM7 FLASH Microcontroller
- AT91SAM7S - ARM7 FLASH Microcontroller
- AT91SAM7SE - ARM7 FLASH Microcontroller
- AT91SAM7X - ARM7 FLASH Microcontroller
- AT91SAM7XC - ARM7 FLASH Microcontroller
NXP (Philips):
- NXP (Philips) LPC2xxx (ARM7) Microcontroller Family
Silicon Labs:
- EFM32 - Gecko 32-bit Microcontroller Family
- EFM32 - Giant Gecko 32-bit Microcontroller Family
- EFM32 - Leopard Gecko 32-bit Microcontroller Family
- EFM32 - Tiny Gecko 32-bit Microcontroller Family
- EFM32 - Wonder Gecko 32-bit Microcontroller Family
- EFM32 - Zero Gecko 32-bit Microcontroller Family
STMicroelectronics:
- STM32F1 Series
- STM32F2 Series
- STM32F3 Series
- STM32F4 Series
|
|
| |
View Downloads for this Product
