Product Highlights |
|
- Low Cost: Equipped to support all of your lab's programming requirements without sacrificing speed, quality or capability
-
Fast Programming Performance: Programs 16-Mbit Flash memory in 12 seconds
-
Quick File Downloading Capability: 2.8 Mbits/second through USB interface
-
48-pin Dual-in-line quality Zero Insertion Force (ZIF) socket
-
Low-Voltage Support: Supplies VCC down to 1.2 volts
-
Universal Device Support: Memories, microcontrollers and programmable logic
-
Windows Interface: Supports Windows 95/98/ME/2000/XP
-
Free Software Updates: For the life of the programmer
-
Approved Algorithms: Follows semiconductor manufacturer published algorithms verbatim
-
Highest Quality: Industrial grade, ISO 9001 certified
|
|

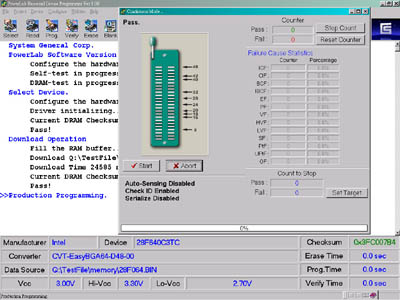

PowerLab Software Functions |
|
|
|
- Device: Read, Blank Check, Program, Verify, Illegal Bit Check, Erase, Secure, Checksum, Protect, Unprotect
-
Insertion Check - avoids damage to device / programmer
-
Auto Start - automatically starts programming when a device is detected in the ZIF socket
-
File Format Auto ID - supports all popular file formats
-
Device - Special Bit Configuration
-
Session Logging
-
Device Help
|
|
Advanced Functions |
|
- Pin Continuity Check
-
Verify with Comparison List
-
Serial Code Programming
-
Range Programming
-
Set/Split Programming
-
Functional Test
-
Parameter Configuration
-
Project Management
-
Enhanced Memory Editor
-
USB Interface
-
Address Relocation
|
|
Using PowerLab as a Device Tester |
|
- PowerLab includes support for user-defineable programming parameters.
-
This allows designers to test sample devices to beyond their datasheet specifications.
-
This can be useful to hand-pick robust devices when assembling a batch of prototype products.
|
|
Electrical Specifications |
|
- Voltage Output: 0.9 V ~ 20.0 V.
-
Current Limit: 900 mA
-
Clock Signals: 1.25 MHz ~ 12.50 MHz
-
Programming Signals: Vcc, Vpp, Vpe, Vps, GND
|
|
PC System Requirements |
|
- Windows 95/98/ME/2000/XP
-
Pentium II and above
-
Free Disk space: 32 MB recommended
-
Serial port and/or USB interface
|
|
Shipping Dimensions & Weight |
|
- Shipping Dimensions: 36.0 x 20.0 x 9.8 cm (14.17 x 7.87 x 3.86 in)
-
Shipping Weight: 2.6 kg (7.97 lbs)
|
|
PowerLab Connectors Overview |
|
|
|
- DC Power Input
-
Power Switch
-
RS-232 Serial Connection to PC
-
USB Connection to PC
|
| |
