Phyton ChipProg-48 - Universal Device Programmer (USB)

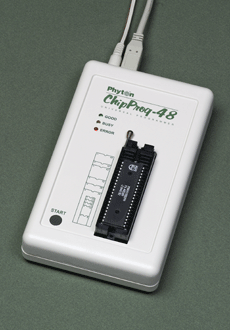

The Phyton ChipProg-48 is a high-speed Universal Device Programmer supporting  programming of many EPROM, FLASH, CPLD and Microcontroller devices. Fast programming speeds are guaranteed due to the USB connection to the PC. The programmer features a 48-pin ZIF socket allowing it to support DIL devices up to 48 pins. The ChipProg-48 also supports In-System Programming (ISP) of AVR and PIC microcontrollers using the optional ISP adaptor.



Features



Hardware Features

  • Supports a wide variety of programmable devices: parallel & serial EPROM & EEPROM; embedded microcontrollers with programmable memory (Flash, OTP); PAL/PALCE/GAL/ PEEL/PLD devices.
  • 48-pin ZIF DIP socket caters for all DIP devices
  • Optional adapters from Phyton and well known adapter manufacturers are available - PLCC, SOIC, TSSOP, QNF, QFP, SSOP, BGA and other packages support
  • Incorrect device insertion check and overcurrent protection
  • Supports in-system programming for the devices allowing the ISP (ICP) mode via special cables-adapters
  • Communicates to a PC via a USB port
  • Supports high-speed programming of Target Devices
  • Advanced self-diagnostic start-up routine

Software Features

  • Windows® 9x/2000/XP/Vista hosted. Has a friendly and intuitive graphic user interface.
  • Supports loading files of all popular formats: Intel HEX, Binary, Motorola S-format, etc.
  • Built-in editor supports operations with blocks and other functions
    Vpp and other parameters precise adjustment via the software settings
  • Splits files to multiple images
  • Embedded script language for automation of routine operations

Device Support

The CHIPROG-48 supports many different devices including:

  • Microcontrollers: 8051, AVR, PIC etc
  • EPROMS
  • Parallel FLASH memories
  • Serial DataFLASH
  • Serial EEPROM's
  • PLDs, CPLDs

In-System Programming (ISP) support

The CHIPPROG-48 also supports In-System Programming (ISP) of many devices including:

  • Atmel AT89S (8051) microcontrollers
  • Atmel AVR microcontrollers
  • Microchip PIC microcontrollers
  • Serial EEPROM's: 24C, 25C 93C

Software / Device updates

  • Lifetime free software updates via Web

Specifications

  • 48-pin ZIF socket
  • USB connection to the PC
  • Size: 160x90x25 mm (6¼x3¾x1 inch)
  • Power Supply: 12V DC reg.




Device Support (by family)



This product supports devices from the families listed below:




Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Ordering Information...




Phyton ChipProg-48 - Universal Device Programmer (USB)
Phyton ChipProg-48 - Universal Device Programmer (USB). Supports many EPROM, FLASH, CPLD and Microcontroller devices.
Manufacturer:  Phyton
Order Code:
Equinox:  PHY-CHIPPROG-48
 1695673
Quantity Price (GBP) [Excl. VAT]
1 and above
482.05

Availability:
0 in stock
10 days delivery
Product Information
Product:  Phyton ChipProg-48 - Universal Device Programmer (USB)
Manufacturer:  Phyton
Order Code:
Equinox:  PHY-CHIPPROG-48
 1695673
Availability:  0 in stock
10 days delivery
Price:   482.05 (GBP)
 [Excl. VAT]
