TRP-C32 - 2-port serial to Ethernet Converter |
|
|
|
|
|
| |
The TRP-C32 is a fast 2-port serial to Ethernet converter. It features both an RS-232 and an RS232 / RS-422 / RS-485 port allowing it to convert serial data from two sources at the same time. It is designed to convert serial data from any of the 2 x synchronous RS-232 ports to a 10/100Mbps Ethernet network running using the TCP/IP protocol. This provides a straightforward method of connecting remote serial peripherals eg. sensors, serial printers etc to an Ethernet network and then allows data to be read from / sent to these remote peripherals by sending data from a single PC other the Ethernet network. Typical applications include remote monitoring of serial sensors / transducers in factory control systems.
The TRP-C32 device can be operated via Windows, Linux and UNIX without the need to modify existing software. The TRP-C32 is capable of operating in “Direct IP Mode”, “Virtual COM Mode”, and “Paired Mode” making it very versatile and suitable for most serial networking applications. It also offers a Heart Beat feature to ensure a reliable communicating connection. The TRP-C38 will work with 'Loop back Mode' where all data is sent back immediately. This feature makes the connection testing easy.
The industry standard DIN rail design enables fast and professional installation. |
| |
| This product does NOT come with a serial cable or power supply. These items should be purchased separately. |
| |
|
|
|
 |

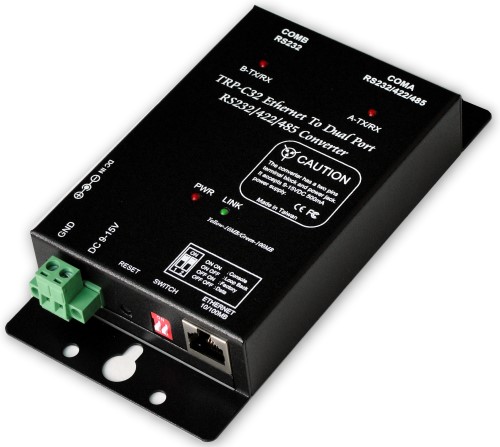

Product picture |
|
|
|
|
Features |
|
- DIN rail or Panel mount support
-
2 serial ports interface: 1 RS-232, 1 RS-232/422/485
-
Auto-detecting 10/100Mbps Ethernet interface
-
In Server mode supports individual client sessions for security
-
Virtual COM drivers for Windows NT/98/ME/2000/XP
-
Auto direction flow control on RS-485
-
Provide with +/- 15KV ESD protection on RS-232/422/485 signals
-
Supported baud rate up to 230.4 Kbps
-
Power/Link/COMA/COMB Flow LED indicators
-
Support intranet and internet system setting function
-
Support screw terminal and standard external DC power adaptor
|
|
Specifications |
|
- CPU: RDC 80186
-
System memory:1MB Byte
-
SDRAM:1MB Byte
-
Flash:256KB
-
Serial Memory: output: 64K bytes per port
-
Power Input Voltage: DC +10V to +15V
-
LAN: 10/100Base-T, 10/100 Mbps Auto-detecting
-
Serial interface: 1 RS232/422/485 (COMA), 1 RS232 (COMB)
-
RS-232: TX, RX, RTS, CTS, DTR, DSR, DCD, And GND.(COM A, B)
-
RS-422: TX+,TX-,RX+,RX-,RTS+,RTS-,CTS+,CTS-,GND(COMA)
-
RS-485 - Data +, Data –, GND (COMA)
-
Data Rate: 110 bps to 230.4 k bps
-
Parity: none, even, odd, mark, space
-
Data Bits: 5, 6, 7 or 8
-
Stop Bits: 1, 1.5 or 2
-
Protocol: TCP, IP, ARP, DHCP, Telnet, HTTP, UDP, ICMP
-
Din-Rail mountable: Yes
-
Power supply: Screw terminal, or external DC adapter
-
Power consumption: 15V/200mA
-
Operating Temperature: 0 to 60℃
-
Storage Temperature: -20 to 70℃
-
Humidity: 10~ 90% Non-Condensing
-
Dimensions: 151mm X 77mm X 26mm
-
Weight: 379g
|
| |
 |
TRP-C32 - 2-port serial to Ethernet Converter
The TRP-C32, a fast 2 port serial to Ethernet device, is designed to instantly convert data from RS-232/422/485 interfaces to a 10/100Mbps Ethernet network running at the TCP/IP protocol.
