TRP-C38 - Ethernet to 8 port RS-232 serial Converter |
|
|
|
|
|
| |
The TRP-C38 is a fast 8-port RS-232 serial to Ethernet converter. It is designed to convert serial data from any of 8 x synchronous RS-232 ports to a 10/100Mbps Ethernet network running using the TCP/IP protocol. This provides a straightforward method of connecting up to 8 x remote serial peripherals eg. sensors, serial printers etc to an Ethernet network and then allows data to be read from / sent to these remote peripherals by sending data from a single PC other the Ethernet network. Typical applications include remote monitoring of serial sensors / transducers in factory control systems.
The TRP-C38 device can be operated via Windows, Linux and UNIX without the need to modify existing software. The TRP-C38 is capable of operating in “Direct IP Mode”, “Virtual COM Mode”, and “Paired Mode” making it very versatile and suitable for most serial networking applications. It also offers a Heart Beat feature to ensure a reliable communicating connection. The TRP-C38 will work with 'Loop back Mode' where all data is sent back immediately. This feature makes the connection testing easy.
The industry standard DIN rail design enables fast and professional installation. |
| |
| This product does NOT come with a serial cable or power supply. These items should be purchased separately. |
| |
|
|
|
 |

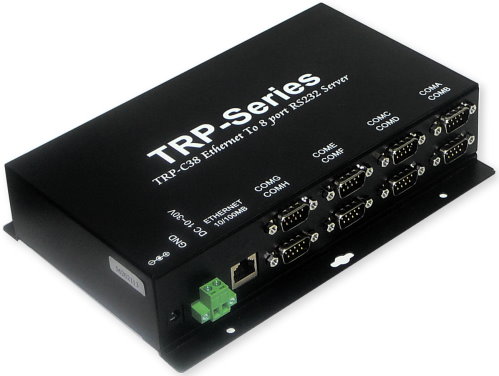

Product picture |
|
|
|
|
Features |
|
- Supports 8 x RS-232 serial interfaces
-
In Server mode supports individual client sessions for security.
-
Virtual COM Port drivers for Windows NT/98/ME/2000/XP
-
Fully compatible with Ethernet and TCP/IP protocol.
-
Supports 10/100 Mbps Ethernet
-
Supported baud rate up to 230.4 Kbps.
-
Power/Link/COMA ~COMH Flow mode LED indicator.
-
Support intranet and internet system setting function.
-
Support screw terminal and standard external DC power adaptor.
-
Power input requirement from DC +10V to +48V.
|
|
Specifications |
|
- CPU: RDC 80186
-
System memory: 1MB Byte
-
SDRAM: 1MB Byte
-
Flash: 256KB
-
Serial Memory: output: 32K bytes per port
-
Power Input Voltage: DC +10V to +48V
-
LAN: 10/100 Mbps Auto-detecting – 10/100Base T
-
Serial interface: 8 ports (COMA, COMB, COMC… …..COMG)
-
RS-232 signal: TX, RX, RTS, CTS, DTR, DSR, DCD, GND
-
Data Rate: 110 bps to 230.4 k bps
-
Parity: none, even, odd, mark, space
-
Data Bits: 5, 6, 7 or 8
-
Stop Bits: 1, 1.5 or 2
-
Protocol: TCP, IP, ARP, DHCP, Telnet, HTTP, UDP, ICMP
-
Power supply: Screw terminal, or standard external DC adapter
-
Power consumption: 12V/450mA
-
Operating Temperature: 0 to 60 degrees
-
Storage Temperature: -20 to 70 degrees
-
Humidity: 10~90% Non-Condensing
-
Dimensions: 120mm X 210mm X 35mm
-
Weight: 638g
|
|
Operating Modes |
|
|
The TRP-38 support the following methods of mapping 'Serial RS-232 Data' to 'Ethernet Data':
- “Direct IP Mode” - a selected remote RS-232 port is mapped to a specified TCP/IP address
- “Virtual COM Mode” - a individual 'Virtual COM Port (VCP) is created for each remote RS-232 port
- “Paired Mode” - allows two TRP-38 devices to be paired together with one as a MASTER and the other as a SLAVE. No PC is then required.
|
| |
 |
TRP-C38 - Ethernet to 8 port RS-232 serial Converter
The TRP-C38 is a fast 8-port RS-232 serial to Ethernet converter designed to instantly convert data from RS-232 interfaces to a 10/100Mbps Ethernet network running using the TCP/IP protocol. Serial cables and power supply are NOT included with this product.
