Sollae EZL-400S - Serial to Ethernet / Wireless Converter Module





The EZL-400S is a serial to Ethernet or serial to Wireless converter with four serial ports. It adds network connectivity to devices by processing TCP/IP protocol required to send and receive data over the Internet. The EZL-400S also makes it possible to extend the distance of serial communications without any change to existing legacy systems or replace direct serial connection. It is a simple and easy way to bring the advantages of remote control and management to serial devices not connected to a network. By using the EZL-400S, devices can be remotely controlled, managed and monitored over the Internet. Additionally the EZL-400S supports secure data communications so that it can be used for secure applications.


This product does not come with a power supply or serial cable as standard. Please order these separately from the Associated Products section.



Features

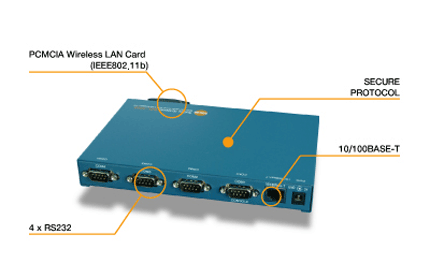

Functional diagram

Product highlights
  • Wireless Access, Monitor, Manage and Control devices over Ethernet or wireless LAN
  • Four RS232 Communication
  • 10/100Base-T Ethernet Interface
  • Powerful security function : SSL3.0/TLS1.0, Password
  • Supports DHCP and PPPoE for xDSL connection
  • Supports EAP-MD5
  • Supports variety of TCP/UDP host connecting modes
  • AT commands to control network connection
  • Easy configuration utility via network (ezConfigMP)
  • Virtual COM Port Redirector (ezVSP) included
  • Auto Sense Ethernet Speed and 1:1 or cross-over cable
  • Firmware is upgradable through network
  • Environmentally-friendly RoHS compliant

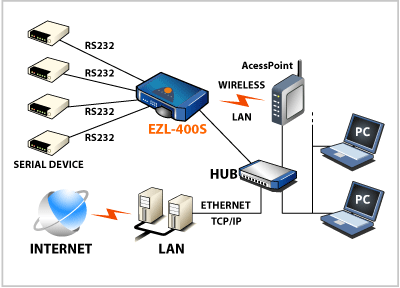

System implementation overview

Specifications
Applications
  • Console Monitoring




Ordering Information...




Sollae EZL-400S - Serial to Ethernet / Wireless Converter Module
The EZL-400S is a serial to Ethernet or serial to Wireless converter. It adds network connectivity to devices by processing TCP/IP protocol required to send and receive data over the Internet.
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-400S
Quantity Price (GBP) [Excl. VAT]
1 - 4
145.00
4 and above
137.75

Availability:
1 in stock


Product Information
Product:  Sollae EZL-400S - Serial to Ethernet / Wireless Converter Module
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-400S
Availability:  1 in stock
Price:   145.00 (GBP)
 [Excl. VAT]
