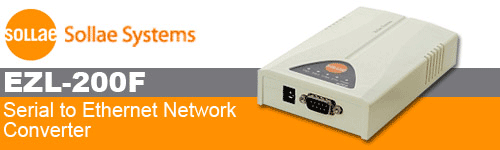

Sollae EZL-200F - Serial to Ethernet Network Converter





The EZL-200F is a Serial to Ethernet network converter for serial devices. It allows any serial (RS232 / RS422 / RS485 enabled) device to connect to and communicate over an Ethernet network. This allows legacy serial devices such as sensors, POS equipment etc. to be networked over Ethernet allowing them to be monitored / controlled remotely over the Internet. The module takes care of all of the Ethernet communications so the no changes to the serial device protocol are required.

The EZL-200F adds Ethernet connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet. The EZL-200F also makes it possible to extend the distance of serial communications without any change of your legacy systems or replacing direct serial connection. This is a simple and easy way to bring the advantages of remote control and management to serial devices. By using EZL-200F devices can be remotely controlled, managed and monitored over the Internet. Additionally EZL-200F supports secure data communications and Telnet COM Port Control Protocols and Multi-Monitoring so that it can be used for various applications.


Please note - This product does NOT come with a mains power supply or PC Serial Cable. These should be ordered separately - see Associated Products link for details.



Features



Functional diagram
Product highlights

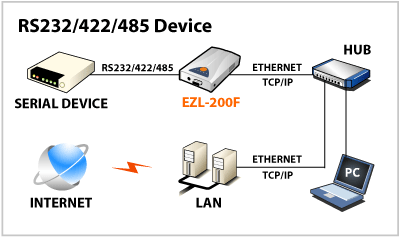

System implementation overview
Specifications
Applications

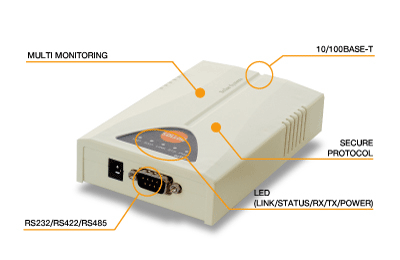

Functional diagram

Product highlights
  • Serial to Ethernet Network convertor
  • Allows any Serial Device to be controlled / monitored over an Ethernet Network
  • Access, monitor, manage and control devices over an Ethernet network or over the Internet
  • 10/100Base-T Ethernet Interface
  • Supports RS232 / RS422 / RS485 Communication
  • Powerful security function : SSL3.0/TLS1.0, SSH2.0, IP filtering, Password
  • Supports multi monitoring function (maximum 8 channels)
  • Supports DHCP and PPPoE for xDSL connection
  • Supports variety of TCP/UDP host connecting modes
  • AT commands to control network connection
  • Easy configuration utility via network (ezConfig)
  • Virtual COM Port Redirector (ezVSP) included
  • Supports RFC2217, Telnet COM Port Control Protocol
  • Auto sense 10/100M Ethernet Speed and 1:1 or cross-over cable
  • Firmware is upgradable through the serial port or network
  • Environmentally-friendly RoHS compliant

System implementation overview

Specifications


 Serial Physical Interface

Serial Interface

RS232 - RXD, TXD, RTS, CTS, DTR, DSR, RI, DCD

RS422 - RX+, RX-, TX+, TX-

RS485 - RT+, RT-

Interface Type is selectable by Software

+/-15KV ESD Protection

Connector

DB9M DTE Connector

 Serial Port Property

Baudrate

1200 bps ¡­ 115200 bps

Data Bits

7, 8 bits

Parity

None, Even, Odd, Mark, Space

Stop Bit

1 or 2

Flow Control

RTS/CTS Hardware, Xon/Xoff Software

 Network Physical Interface

Network
Interface

RJ45 (10Base-T/100Base-TX Ethernet)

Ethernet Speed Auto Sense

1:1 or Cross-over Cable Auto Sense

1000 VAC Isolation

 Software Functions

Protocols

TCP, UDP, IP, ICMP, ARP, Ethernet, TELNET,
TFTP, DHCP, PPPoE, SLIP, SSL3.0/TLS1.0, SSH

Security

SSL (Secure Socket Layer)

SSH (Secure Shell)

IP filtering - Restrict host

Password for Configuring

Communication
Mode

TCP server (T2S)

TCP client (COD)

TCP server/client with AT command (ATC) - Patent

UDP mode (U2S)

Additional
Functions

Multi Monitoring - maximum 8 hosts (T2S Mode)

Telnet COM Port Control Option (RFC2217 Compliant)

Simple Gateway Function (SLIP)

Operating System

MIC RTOS

 Indicators(LEDs)

Power

Red

Status

Yellow, The current status

Ethernet Link

Red - 10M Ethernet, Green - 100M Ethernet

Ethernet RXD

Yellow

Ethernet TXD

Green

 Processors

CPU

ARM7 Core

ROM

256K bytes Flash Memory

RAM

2M bytes SDRAM

 Management

ezConfig

Configuration and Monitoring Tool through Ethernet

Telnet

Telnet Login

SSH

SSH Login

AT Command

Configuring in ATC mode - Patent

 Supplementary Software

ezConfig - Configuration Tool for Windows

ezConfig Library - The Library of ezConfig for VC++, VB, Java, and Linux

ezVSP - Serial to Network Virtual Driver for Windows

ezTerm - Simple TCP/IP Communication Test Tool

hotflash - Firmware Upgrade Utility for Windows

 Dimension

Size

136mm x 83mm x 29mm

Body Netweight

about 140g

 Operating Environment

Input Voltage

DC 5V +/-0.5V (Power supply not included as standard)

Power Consumption

320mA typical

Operating Temperature

0 - 55 deg. C

 Approvals

CE

F690501/SP-EMC000415

FCC

F690501/LF-EMC000949

MIC

E-E013-05-1418(A)

 Emissions

EN55022:1998/A1:2000/A2:2003 (Class A)

EN61000-3-2:2000

EN61000-3-3:1995/A1:2001

EN55024:1998/A1:2001/A2:2003

FCC Part15, Subpart B, Class A

 Immunity

EN61000-4-2:1995/A1:1998/A2:2000

EN61000-4-3:1996/A1:1998

EN61000-4-4:1995/A1:2000/A2:2001

EN61000-4-5:1995/A1:2001

EN61000-4-6:1996/A1:2001

EN61000-4-11:1994/A1:2001



Applications
  • Extending distance
  • Connecting two networks
  • Console Monitoring
  • Replacement RS485
  • Multi Monitoring
  • Secure Communication
  • Card Approval
  • Weather Monitoring
  • Advertisement




Ordering Information...




Sollae EZL-200F - Serial to Ethernet Network Converter.
The EZL-200F is a network converter for serial devices. It adds network connectivity to devices by processing TCP/IP protocol which is required to send and receive data over the Internet.
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-200F
Quantity Price (GBP) [Excl. VAT]
1 - 9
64.90
10 and above
61.66

Availability:
1 in stock
Product Information
Product:  Sollae EZL-200F - Serial to Ethernet Network Converter.
Manufacturer:  Sollae Systems
Order Code:  SOL-EZL-200F
Availability:  1 in stock
Price:   64.90 (GBP)
 [Excl. VAT]
