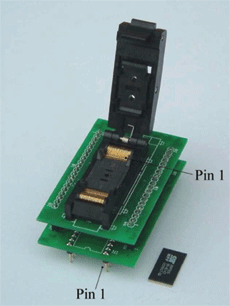

Conitec 210860: Socket Adaptor- 40-pin DIL to 40-pin(20 mm)TSOP for Flash Components





The Conitec 210860 is a Programming Adaptor which converts a device in a 40-pin TSOP package to a 40-pin 20 mm pitch DIL pinout suitable for using with a Device Programmer. It is suitable for use with most device programmers.

Type: TSOP
Top Adaptor Package: TSOP-40
Bottom pin-out: DIL-40

Please note:

  • The adaptor 210860 is supplied with a socket for the
    long package version (10 x 20 mm)
  • The adaptor 210861 is supplied with a socket for the
    short package version (10 x 14 mm).
  • The same pin configuration is used for the TSOP-40 devices, because the adaptor converts the pinout by a standard rule: Pin X of the DIL-40 pinout is connected to pin (X+10) of the
    TSOP-40 pinout (1-11...30-40, 31-1...40-10).



Ordering Information...




Conitec 210860: Socket Adaptor- 40-pin DIL to 40-pin(20 mm)TSOP for Flash Components
This is a 40-pin DIL to 40-pin (20mm) TSOP Socket adaptor for 40-pin FLASH Components.
Manufacturer:  Conitec
Order Code:  CON-210860
Quantity Price (GBP) [Excl. VAT]
1 and above
151.00

Availability:
0 in stock
10 days delivery
Product Information
Product:  Conitec 210860: Socket Adaptor- 40-pin DIL to 40-pin(20 mm)TSOP for Flash Components
Manufacturer:  Conitec
Order Code:  CON-210860
Availability:  0 in stock
10 days delivery
Price:   151.00 (GBP)
 [Excl. VAT]
