XPLAIN - XMEGA AVR Microcontroller - Evaluation Kit

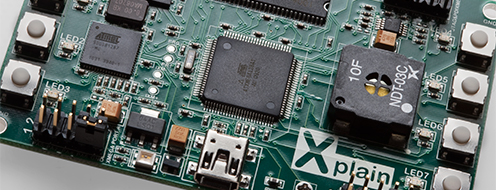

The XMEGA-A1 Xplained kit features a low-cost demonstration board based on the ATxmega128A1 XMEGA AVR microcontroller. This board allows for quick evaluation of the XMEGA microcontroller family without requiring any additional hardware. It has an on-board programmer based on an AT90USB 1287 microcontroller which is pre-loaed with firmware allowing the ATxmega128A1 device to be programmed via the 2-wire PDI programming interface.

The XMEGA-A1 Xplained kit features the ATxmega128A1 device which is a picoPower device optimized for the best possible combination of real time performance, integration and power efficiency. It is part of the 8/16-bit AVR XMEGA family of devices ranging from 44-100 pin, 16-256 KB of Flash program memory and 4-16 KB of SRAM. The XMEGA A1 Xplained kit features a separate board controller and UART/I2C bridge to USB to drive the USB port.




Features



Main Features

  • Compact evaluation / demonstration board for the Atmel XMEGA AVR microcontroller family
  • Features ATxmega128A1 XMEGA AVR microcontroller device
  • Features AT90USB1287 AVR microcontroller which is used as a USB-controlled XMEGA PDI programmer
  • The ATxmega128A1 XMEGA AVR micrococontroller can be programmed via the 2-wire PDI interface using the AT90USB1287 microcontroller
  • The ATxmega128A1 device can also be programmed via JTAG using an external JTAG programmer (not supplied)
  • XPLAIN board is controlled via USB Port
  • 4 x push-buttons for evaluation purposes
  • 4 x LEDs for evaluaion purposes
  • Most ATxmega128A1 port pins are brought out to I/O header connectors
  • Example firmware available from the Atmel website

XMEGA Programming interfaces

  • The ATxmega128A1 microcontroller can be programmed via the 2-wire PDI programming interface. This is performed using pre-loaded firmware in the AT90USB127 microcontroller.
  • The ATxmega128A1 microcontroller can also be programmed via the JTAG interface. An external JTAG programmer (not supplied with this kit) is required. e.g. JTAG-ICE MK2 debugger




Device Support (by family)



This product supports devices from the families listed below:

Atmel Corporation:
  • ATxmega AVR - FLASH Microcontroller Family



Device Support (by manufacturer / programming algorithm)




Atmel Corporation

JTAG - In System Programming (ISP) via JTAG Debug Port:
ATxmega AVR - FLASH Microcontroller Family :
ATxmega128A1

XMEGA PDI (2-wire Interface):
ATxmega AVR - FLASH Microcontroller Family :
ATxmega128A1



Ordering Information...




XPLAIN - XMEGA AVR Microcontroller - Evaluation Kit
The XPLAIN is a low-cost demonstration board based on the ATxmega128A1 XMEGA AVR microcontroller. It allows for the quick evaluation of the XMEGA microcontroller.
Manufacturer:  Atmel Corporation
Order Code:  ATAVRXPLAIN
Quantity Price (GBP) [Excl. VAT]
1 and above
29.95

Availability:
6 in stock
Product Information
Product:  XPLAIN - XMEGA AVR Microcontroller - Evaluation Kit
Manufacturer:  Atmel Corporation
Order Code:  ATAVRXPLAIN
Availability:  6 in stock
Price:   29.95 (GBP)
 [Excl. VAT]
