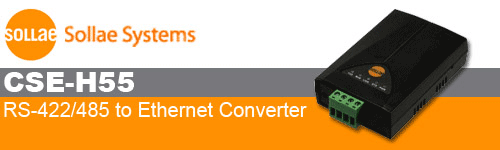

Sollae CSE-H55 - RS-422/485 to Ethernet Converter - Overview




The CSE-H55 is a product for manufacturers who want to quickly and easily add Ethernet connectivity in their system. This compact product helps your RS422/485 system get network connectivity with just a serial connection at a reasonable price. Applying this product, not only can you reduce cost and risk, but also you can shorten development time to add the network capability. Because CSE-H55 allows to extend the distance of your serial communication system, you are able to remotely control and monitor the serial devices over the Internet anywhere you are. CSE-H55 is specially designed for users who have RS422 or RS485 devices.



Features



Functional diagram
Product features
System implementation overview
Applications

Functional diagram

Product features
  • RS422 / RS485 - Serial to Ethernet Network convertor
  • Allows any Serial RS422 / RS485 Device to be controlled / monitored over an Ethernet Network
  • Access, monitor, manage and control devices over an Ethernet network or over the Internet
  • 10/100Base-T Ethernet Interface
  • Compact size : 94mm x 57mm x 24mm
  • 10/100Base-T Ethernet, auto MDI/MDIX
  • 1 x RS422/RS485 (Terminal Block, up to 230,400bps)
  • Variety of monitoring status (debugging mode, ezManager, Telnet)
  • Flexible configuration and network communication by 'AT Commands' (patent)
  • 4 x Communication modes (TCP server, TCP client, AT Command and UDP)
  • DHCP and PPPoE
  • DNS (easy access using domain name)
  • DDNS (dynamic IP address management by domain name)
  • IP Change Notification for dynamic IP address management (TCP, UDP and DDNS)
  • Firmware upgrade through Network
  • Powerful management software for Windows OS (ezManager)
  • Virtual COM Port Redirector for Windows OS (ezVSP)
  • Wide range of operating temperature (-40℃~+85℃, meet the industrial temperature range)
  • Environmentally-friendly RoHS compliant

System implementation overview

Applications
  • Replacement RS485 to TCP/IP network
  • Remote Weather Monitoring System
  • Remote Controlling Pan Tilt Camera



Product Versions
The standard version of the CSE-H55 does NOT come with a power supply or serial cable. Please order the CSE-H55(UN) version if you require a power supply and serial cable.

Sollae CSE-H55 - RS-422/485 to Ethernet Converter
The EZL-CSE-H55 is a network converter for serial devices. It adds network connectivity to RS422/485 devices by processing TCP/IP protocol which is required to send and receive data over the Internet. This product does NOT come with a power supply or serial cable.
Order Code:  SOL-CSE-H55
Quantity Price (GBP) [Excl. VAT]
1 - 4
56.95
5 and above
54.10

Availability:
0 in stock
7 days delivery
Sollae CSE-H55(UN) - RS-422/485 to Ethernet Converter inc power supply
The EZL-CSE-H55 is a network converter for serial devices. It adds network connectivity to RS422/485 devices by processing TCP/IP protocol which is required to send and receive data over the Internet. Includes power supply and serial cable.
Order Code:  SOL-CSE-H55(UN)
Quantity Price (GBP) [Excl. VAT]
1 - 4
77.70
5 and above
73.82

Availability:
0 in stock
7 days delivery
Sollae CSE-H55N - RS-422/485 to Ethernet Converter
The EZL-CSE-H55N is a network converter for serial devices. It adds network connectivity to RS422/485 devices by processing TCP/IP protocol which is required to send and receive data over the Internet.
Order Code:  SOL-CSE-H55N
Quantity Price (GBP) [Excl. VAT]
1 - 4
59.46
5 and above
56.49

Availability:
5 in stock
Sollae CSE-H55N(UN) - RS-422/485 to Ethernet Converter inc power supply
The EZL-CSE-H55N is a network converter for serial devices. It adds network connectivity to RS422/485 devices by processing TCP/IP protocol which is required to send and receive data over the Internet. Includes power supply and serial cable.
Order Code:  SOL-CSE-H55N(UN)
Quantity Price (GBP) [Excl. VAT]
1 - 4
77.70
5 and above
73.82

Availability:
0 in stock
7 days delivery
Sollae CSE-H55N2- Industrial RS422/RS485 Ethernet Device Server
SOL-CSE-H55N2 is an industrial RS422/RS485 to Ethernet converter designed to be more stable against noise and electrical damage.
Order Code:  SOL-CSE-H55N2
Quantity Price (GBP) [Excl. VAT]
1 - 4
59.46
5 and above
56.49

Availability:
7 in stock


Downloads
Download View Downloads for this Product
