ST STM32 - 32-bit ARM Cortex MCUs - Device Library - OVERVIEW





Equinox Technologies manufactures a comprehensive range of programmers suitable for high-speed In-System Programming (ISP) of the ST STM32 ARM Cortex MCU Device Family. Support for programming in development, in the field and in low / medium / high volume production is available. All programmers offer very fast programming of the on-chip FLASH memory of the STM32 devices due to the use of the ‘ARM JTAG Debug Interface’ for programming. All of our programmers offer ‘Standalone Programming Mode’ operation where they can be operated via a keypad / display by an operator (no PC required!)


The STM32 Device Library’ can be ordered as a ‘License upgrade’ for most of our ISP programmers - order code UPG32.




Features



Main Features
Development programming mode
Production Programming solutions
Field Programming solutions
ST STM32 - ISP Connections
ARM ISP Connector Cables for portable programmers
Device Support List
Equinox programmer support

Main Features

  • High-speed In-System Programming (ISP) support of ST STM32 microcontrollers
  • Programming solutions for development, low / mid / high volume production and field programming of ST STM32 microcontrollers
  • Programs the on-chip FLASH Memory of ST STM32 microcontrollers
  • Uses industry standard ‘ARM JTAG Debug Interface’ port as the ISP interface
  • Very high-speed programming due to fast JTAG programming interface, local user data storage and optimised programming algorithms
  • Programmers can be used in ‘Standalone Mode’ (no PC required)
  • Supports high-speed program / verify of the on-chip FLASH in a singe operation.
  • Supports programming of ST STM32 devices when placed in a ‘JTAG Chain’ (JTAG daisy-chain mode)
  • Fully user-configurable pre-programming statemachine supports custom target reset circuits

Development programming mode

  • Powerful yet simple-to-use Development Suite called ‘EDS’
  • All aspects of programming the ST STM32 device can be controlled from EDS (Equinox Development Suite)
  • Program and read back the STM32 device on-chip FLASH memory under PC control
  • All projects can be developed and tested on a real device before uploading a ‘Standalone Programming Project’ to the programmer
  • Tested ‘Programming Projects’ can then be uploaded to the programmer for use in ‘Standalone Mode’

Please note:

This is a 'programming solution' only. It is not a debugger.

Production Programming solutions

The 'ISPnano' family of production programmers supports programming of all ST STM32 microcontrollers...

Overview Title

ISPnanoS3ISPnano-GANGISPnanoS3-ATEISPnanoS4-ATE

ISPnano-MUXISPnano-MUX4ISPnano-MUX8

Click on the picture of a programmer to view the full programmer description page.

Key features of the 'ISPnano' programmer family.....

  • Programmers can be used in ‘Standalone Mode’  (no PC required)
  • A single ‘Standalone Programming Project’ can Erase the device and program /verify the FLASH area in a single operation.
  • Up to 64 x ST STM32 ‘Standalone Programming Projects’ can be stored inside the on-board memory of an ISPnano programmer.
  • Programmer can store multiple versions of firmware for different ‘customer product versions’.
  • Support for programming unique data per device including serial numbers, MAC addresses, calibration data, barcode data etc.
  • ConsoleEDS – powerful ‘console application’ allows the programmer to be controlled from any custom remote application.
  • ISP-PRO – powerful production control / sequencing utility supports controlling of up to 32 programmers from the same PC.
  • ISPnano-MUX programmer family - supports sequential programming of up to 8 x independent Target Boards (UUTs) on a ‘PCB Panel’
  • ISPnano-GANG programmer family - supports concurrent gang programming of up to 32 x independent Target Boards (UUTs) on a ‘PCB Panel’

Field Programming solutions

  • The Epsilon5-MK4, FS2009USB and ISPjuno programmers can all be used to re-program an ST STM32 microcontroller based Target System in the field.
  • All programmers operate in so-called ‘Standalone Mode’ where a PC / laptop is not required after the programmer has been configured.

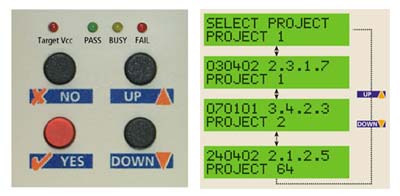

  • Operator uses programmer keypad / Display to select the required ‘Standalone Programming Project’ to execute
  • Single-key ‘Autoprogram button’ – allows the same project to be executed repeatedly
  • Ideal for field-service personnel for re-programming vending machines and any other equipment / plant in the field.
  • The FS2009 and ISPjuno programmers can store up to 64 x ‘Standalone Programming Projects’ so the field operator can select which product firmware to program.

ST STM32 - ISP Connections

Important note:
The programmer connects to the 'JTAG Debug port' of theST STM32 microcontroller.

ARM ISP Connector Cables for portable programmers

A special 'ARM ISP cable' has been developed which connects between any Equinox portable ISP programmer e.g. Epsilon5, FS2003, FS2009 and any ST STM32 based Target System which features the 20-way IDC JTAG connector.

Device Support List

The following ST STM32 FLASH microcontrollers devices are currently supported by our range of development, field and production ISP programmers:

Important note:
The only programming interface currently supported is the 'JTAG debug port' of the STM32 device. We do not currently support the SWD (Single Wire Debug Interface) programming interface.

Equinox programmer support

Equinox offer a comprehensive range of programmers which support development, field and production programming of ST STM32  FLASH microcontroller devices.

The table below details the available programmer support:

Programmer

ST STM32 Support Requirements

Upgrade Order Code







EPSILON5
EPSILON5MK4

 License upgrade

+ CAB-ARM7-20W ISP Cable

EPSILON5-UPG32

FS2003

License upgrade

+ CAB-ARM7-20W ISP Cable

FS2003-UPG32

FS2009
FS2009USB

License upgrade

+ CAB-ARM7-20W ISP Cable

FS2009-UPG32

PPM3-MK2

License upgrade

+ EQ-IO-CON-10 Connector Module

+ EQ-SFM-MAX-V1.3 High-speed I/O Driver Module

PPM3A1-UPG32

PPM4-MK1

License upgrade

+ EQ-IO-CON-10 Connector Module

+ EQ-SFM-MAX-V1.3 High-speed I/O Driver Module

PPM4MK1-UPG32

ISPnano Series 1

License upgrade

ISPNano-UPG32

ISPnano Series 2

License upgrade

ISPNano-UPG32

ISPnano Series 3

License upgrade

ISPNano-UPG32

ISPnano Series 3 ATE

License upgrade

ISPNano-UPG32

ISPnano Series 4

License upgrade

ISPNano-UPG32

ISPnano-MUX8

License upgrade

ISPNano-UPG32

ISPnano-MUX4

License upgrade

ISPNano-UPG32

ISPnano-MUX2

License upgrade

ISPNano-UPG32







Please note:

  • A chargeable ‘License Upgrade’ is required to enable the ST STM32 device library. This is provided with the License Upgrade.



Product Versions
The ST STM32 Device Library is available for the programmers listed below.

ISPJuno ST STM32 - 32-bit ARM Cortex MCUs - Device Library
This Device Library supports In-System Programming (ISP) of the ST STM32 ARM Cortex MCU Device Family.
Order Code:  ISPJuno-UPG32
Quantity Price (GBP) [Excl. VAT]
1 - 3
275.00
4 and above
247.50

Availability:
0 in stock
7 days delivery
ISPnano ST STM32 - 32-bit ARM Cortex MCUs - Device Library
This Device Library supports In-System Programming (ISP) of the ST STM32 ARM Cortex MCU Device Family.
Order Code:  ISPnano-UPG32
Quantity Price (GBP) [Excl. VAT]
1 - 3
275.00
4 and above
247.50

Availability:
996 in stock


Downloads
Download View Downloads for this Product
