Brainboxes - ES-020 - Ethernet to Serial Converter - 1 x RS232 Port




The Brainboxes ES-020 is an Ethernet to Serial Converter / Device Server which converts serial data from a single RS232 Port to a datastream over Ethernet. It can be used to interface any legacy RS232 serial device e.g. POS equipment, sensors etc to an Ethernet network. This allows these serial devices to be interfaced to an internal Intranet or with the correct configuration allows them to be controlled over the Internet.



Features



Main Features
Product picture
Technical specification
Rugged Enclosure
Integrated Wall Mount
Optional DIN Rails Mounts
Signed Microsoft Windows drivers
Approvals
Typical applications

Main Features
  • Ethernet to Serial Converter / Device Server
  • 1 x RS-232 Port
  • All connections via pluggable Terminal Block
  • Data rates supported:  from 110 to 921,600 baud
  • User friendly interface, simple to use, powerful in operation
  • Web configuration and RFC2217 compliant interface for non-Windows users
  • IP-30 rated enclosure
  • LED status indication
  • Optional DIN rail mounting kit
  • Serial Port Tunnelling allows serial cable replacement over any distance, no software required

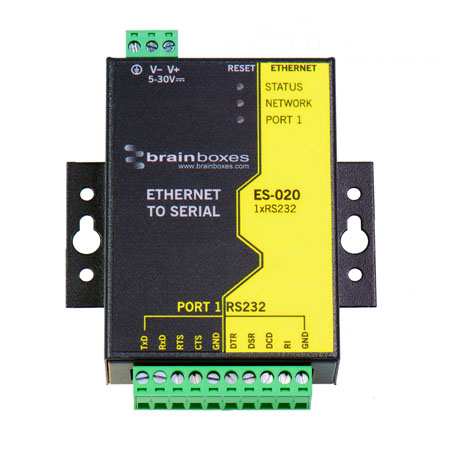

Product picture

Technical specification
Rugged Enclosure

  • IP-30 rated rugged case protects the device in any environment from industrial to office.
  • IP (International Protection Rating) Code specifies that objects greater than 2.5mm in diameter cannot penetrate the case. This means that the case provides a safety barrier from objects (such as tools and wires) interfering with the internal circuitry.

Integrated Wall Mount

  • All Brainboxes' light industrial serial Ethernet adapters feature integrated wall mount points which are located on either side of the device (also known as Ears).
  • Screws or nails can be used to attached the device through the wall point ears to a wall, table or any firm flat surface.

Optional DIN Rails Mounts

  • The DIN rail mounts are an optional accessory. This allows the device to be mounted in a Server rack or any DIN rail fitted equipment rack.
  • The DIN rails conform to IEC International Standard 60715 and European Standard EN 50022.

Signed Microsoft Windows drivers
  • Windows 2000
  • Windows XP 32 bit & 64 bit editions
  • Windows Vista 32 bit & 64 bit editions
  • Windows 7 32 bit & 64 bit Editions

Approvals
  • EMC: CD, ROHS, WEE, TAA compliant, GB AEOF 0031/11, Microsoft Gold Certified Partner

Typical applications
  • To convert any legacy serial device which uses RS232 to an Ethernet data stream.
  • Networking a legacy serial devices to internal Ethernet networks or to the Internet
  • Legacy devices could include Point-of-sale (POS) equipment, barcode scanners, sensors, programming equipment etc.




Ordering Information...




Brainboxes - ES-020 - Ethernet to Serial Converter - 1 x RS232 Port
The Brainboxes ES-020 is an Ethernet to Serial Converter / Device Server which converts serial data from a single RS232 Port to data over Ethernet.
Manufacturer:  Brainboxes
Order Code:  BRAIN-ES-020
Quantity Price (GBP) [Excl. VAT]
1 and above 139.95

Availability:
0 in stock
2 days delivery

For further information about related products, please see the Overview Product.

Product Information
Product:  Brainboxes - ES-020 - Ethernet to Serial Converter - 1 x RS232 Port
Manufacturer:  Brainboxes
Order Code:  BRAIN-ES-020
Availability:  0 in stock
2 days delivery
Price:   139.95 (GBP)
 [Excl. VAT]


Overview Product
Brainboxes - Light Industrial Ethernet to Serial converter range >>
