ams - Magnetic rotary encoder - Overview





This page provides an overview of the programming / calibration support offered for ams magnetic rotary encoder devices.

Application Note Product Leaflets Downloads Software Upgrades FAQs




Features



ISPnano Programmer support

The programmers shown in the illustration below can be used for programming AMS Magnetic Rotary Position Sensor devices.....

Overview Title

ISPnanoS3ISPnano-GANG2ISPnanoS3-ATEISPnanoS4-ATE

ISPnano-MUXISPnano-MUX4ISPnano-MUX8

Click on the picture of a programmer to view the full programmer description page.

Important notes:

  • The ISPnano Series 3, Series S3 ATE, Series 4 ATE and GANG programmers require a 'Device Library' per programmer channel.

  • The ISPnano-MUX programming systems only require one license per programmer.

Device Library Support

Device Library

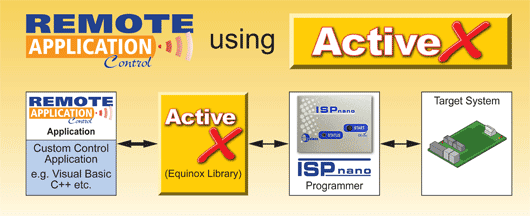

ActiveX Control




Device Support (by family)



This product supports devices from the families listed below:

ams:
  • 3D Hall Encoders
  • Magnetic Rotary Encoder



Device Support (by manufacturer / programming algorithm)




ams

Unspecified algorithm:
3D Hall Encoders:
AS5400 (1-wire interface), AS5403 (1-wire UART interface)
Magnetic Rotary Encoder:
AS5162 (1-wire UART interface), AS5163 (1-wire interface), AS5262 (1-wire UART interface), AS5263 (1-wire interface)



Device Support
Device Support List


Downloads
Download View Downloads for this Product


Associated Products View All
ISPnano - AMS Magnetic Encoder - Device Support Library >>
