ISPnano-S3 - GANG2 - 2-channel ams Magnetic Position Sensor programming system





The ISPnanoS3-GANG2 is a 2-channel gang programming system made up of 2 independent ISPnano Series 3 programmers. It is capable of independently programming each of the sensor devices inside a dual-die ams Magnetic Position Sensor device.




Features



Main Features
ams dual-die Magnetic Sensor device
Typical applications
2-sensor programming illustration
Gang ISP Programming / Network Programming Support
Device Support

Main Features
  • Supports concurrent / asynchronous programming and calibration of the 2 x independent sensor devices in an ams Magnetic Position Sensor device.
  • Each sensor device (DUT) is connected to an independent programmer
  • Extremently fast parallel / concurrent programming and calibration
  • A short-circuit or programming signal loading issue on one channel does not affect the other channel(s)

ams dual-die Magnetic Sensor device

A dual-die ams Magnetic Position Sensor comprises 2 x independent sensor devices encapsulated inside the same physical package. Each sensor features completely independent power and control signals.

Typical applications
  • Concurrent / asynchronous programming of 2 x independent Target Boards (DUTs)
  • Concurrent programming / calibration of ams dual-die magnetic Position Sensor Devices e.g. AS5263, AS5262

2-sensor programming illustration

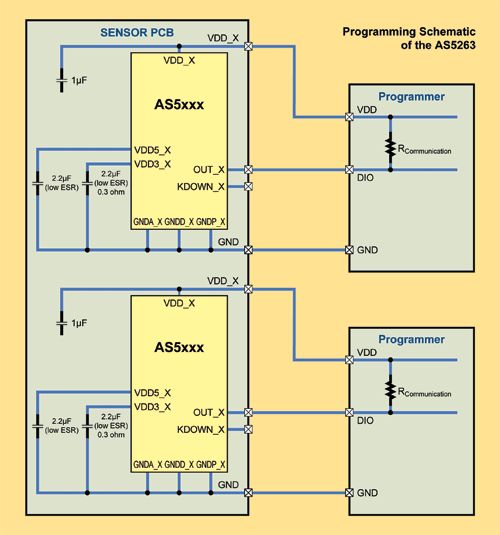

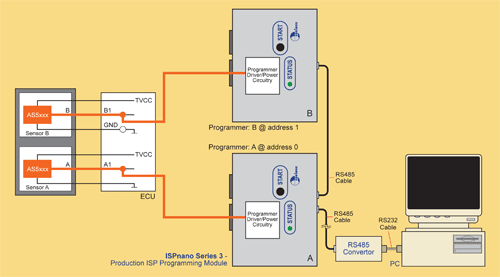

The above illustration shows how 2 x ISPnano Series 3 programmers can be used to concurrently program both sensors inside a dual-die ams Magnetic Position Sensor device.


Gang ISP Programming / Network Programming Support

Gang ISP Programming configuration is ideal for programming multiple PCB's on a 'PCB Panel'
• Up to 32 programmers can be controlled from a single PC using the RS485 Bus
• Compact size and network option allows up to 32 programmers to be mounted even in small fixtures.




Device Support (by manufacturer)



This product supports devices from the manufacturers listed below:

Atmel Corporation
Exel Semiconductor (Rohm)
Holtek Semiconductor
IC Microsystems
ISSI
Microchip
NXP (Philips)
ON Semiconductors (Catalyst)
Ramtron
Rohm
Seiko Instruments
Sigma Designs
STMicroelectronics
Xicor



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Ordering Information...
