Equinox Integrated Programming Fixtures





Equinox design and manufacture a range of quality off-the-shelf ‘Programming fixtures’ for use in low to medium throughput production environments. Each fixture can be individually customised to support programming of the specific programmable microcontroller or serial memory device(s) located on the customer Target Board (DUT).

An Equinox ‘ISPnano Series IV ATE’ production ISP programmer is integrated within each fixture. All the connections between the programmer and the probe-pins which make contact with the DUT are pre-wired for the chosen programming interface e.g. SPI, JTAG, I2C, PDI, TPI etc. Quality mechanics and bed-of-nails probe-pins ensures reliable programming every time.

Device SupportDownload PicNewsSoftware UpgradesDevice Libraries

Return to ISPnano OverviewIO ConnectorsISPnano-S4




Features



Programmer Features

  • Single-channel In-System Programming (ISP) fixtures designed for low to medium throughput production environments
  • Fixture features an integrated ‘ISPnano Series IV ATE’ production ISP programmer mounted on the underside of the lid of the fixture
  • Supports up to 10 x probe-pin (bed of nails) which make contact with the customer PCB probe pads
  • Lid switch / DUT sensing - allows programming sequence to start automatically when fixture lever is lowered
  • Standalone programming (no PC) is possible

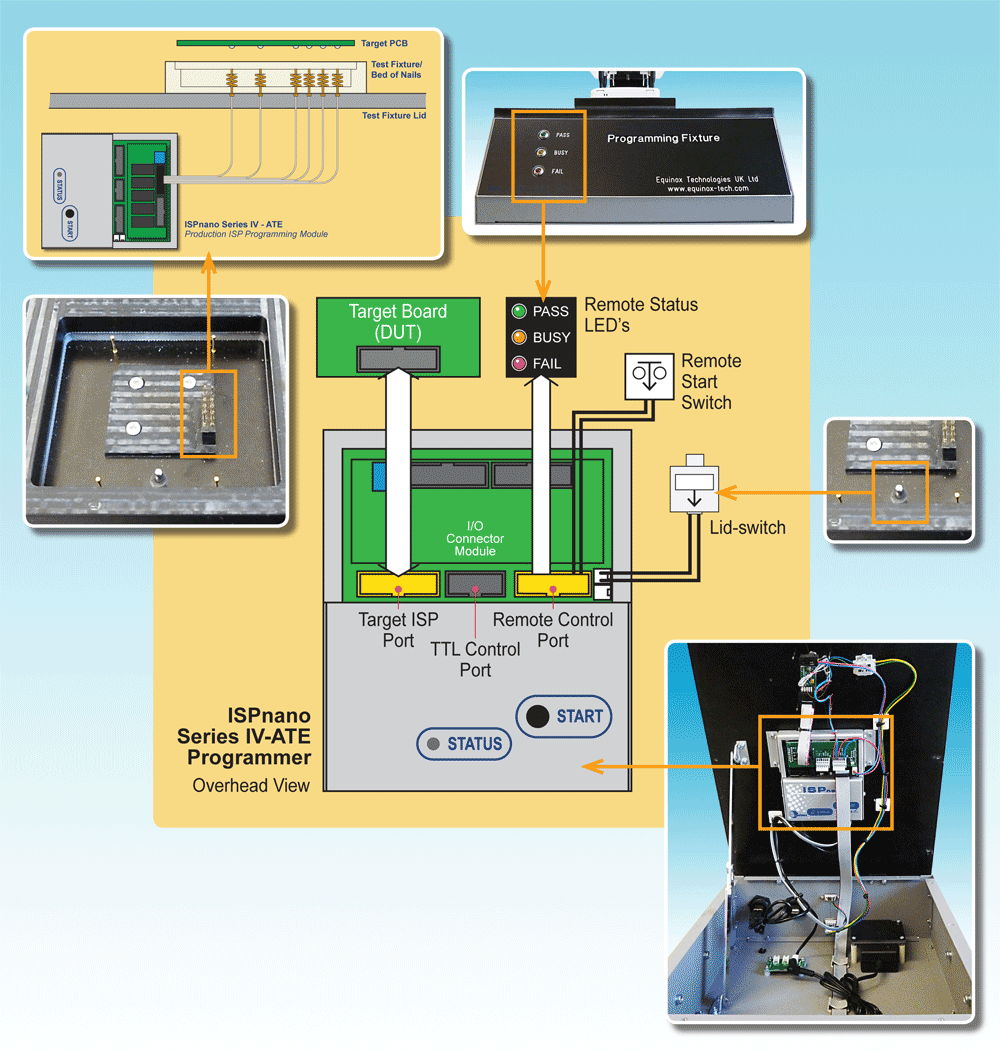

Connecting the ISPnanoS4

Connecting the ISPnano

Integrated Programmer

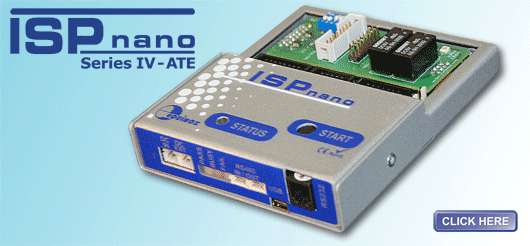

ISPnanoS4

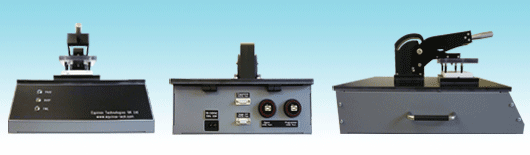

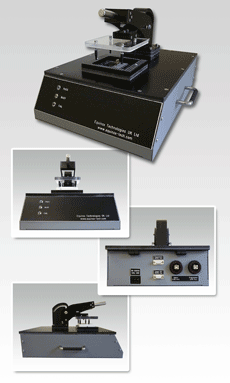

Programming Fixture Pictures

Programming Fixture Pictures

Equinox Warranty for ISPnano Production Programmers

Equinox Warranty




Ordering Information...




Equinox Integrated Programming Fixtures
Equinox design and manufacture a range of quality off-the-shelf ‘Programming fixtures’ for use in low to medium throughput production environments.
