Brainboxes PM-010 2 Port RS232 PCMCIA with detachable cables





A PCMCIA type II card providing two independent RS232 serial ports. Velocity megabaud data transfer rates and the 128 byte deep FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. The detachable cables allow the PC card to stay in the laptop without risk of damage during transit. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 95/98/2000, XP, Server 2003, Vista, Server 2008 and Windows 7.





Features



Product Features

  • 2 Port RS-232 PCMCIA Adapter Card (PC Card)
  • Data rate from 110 to 921,600 baud
  • Detachable Serial Cables
  • 128 Byte Transmit and Receive FIFOs
  • Drivers for all popular operating systems
  • Lifetime Warranty and Support

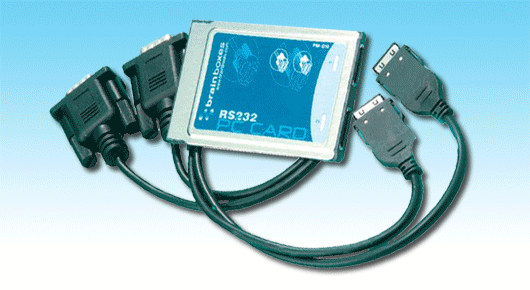

Product picture

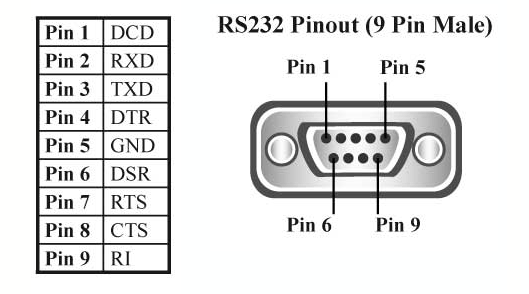

PM-010 RS232 Connector Pinout

Interface


PCMCIA
(Personal Computer Memory Card International Association) is an international standards body and trade association with over 100 member companies that was founded in 1989 to establish standards for Integrated Circuit cards and to promote interchangeability among mobile computers where ruggedness, low power, and small size were critical.





Ordering Information...




Brainboxes PM-010 2 Port RS232 PCMCIA with detachable cables
A PCMCIA type II card providing two independent RS232 serial ports.
Manufacturer:  Brainboxes
Order Code:  BRAIN-PM-010
Discontinued Product

This product has been discontinued. Please refer to the Replacement Product instead:

Brainboxes PM-154 - 1 Port RS422/485 PCMCIA with ruggedised integrated cable
1 Port RS422/485 PCMCIA with ruggedised integrated cable
Manufacturer:  Brainboxes
Order Code:  BRAIN-PM-154
Quantity Price (GBP) [Excl. VAT]
1 and above 135.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  Brainboxes PM-010 2 Port RS232 PCMCIA with detachable cables
Manufacturer:  Brainboxes
Order Code:  BRAIN-PM-010
Discontinued Product


Discontinued Product
This product has been discontinued and replaced by the following product(s):
Brainboxes PM-154 - 1 Port RS422/485 PCMCIA with ruggedised integrated cable >>


Downloads
Download View Downloads for this Product
