Phyton ChipProg-G41 - Universal 4-channel Gang Programmer for Manufacturing





The Phyton ChipProg-G41 is powerful 4-channel production gang programmer suitable for medium to high volume off-board production programming. It features 4 x independent programming modules allowing it to program  4 ICs simulataneously. The 4 x high-quality 48-pin ZIF sockets support insertion of any DIL device up to 48 pins. A range of Socket Adaptors is available to suit most other package types.

The ChipProg-G41 programmer is based on 4 x Phyton ChipProg-48 programmers working concurrently and so provides very fast programming. It supports parallel & serial EPROM & EEPROM; microcontrollers, and PAL/PALCE/GAL/PEEL/PLD devices.

The ChipProg-G41 programmer is controlled via a single USB port to a PC. The powerful PC software supports sequencing of all 4 programming sites.




Features



Product picture
Features
4-channel gang programming
48-pin ZIF Socket
Device Support Overview
Optional Socket Adaptors
Powerful PC Driver Software
Technical specifications
Approvals
Device Support

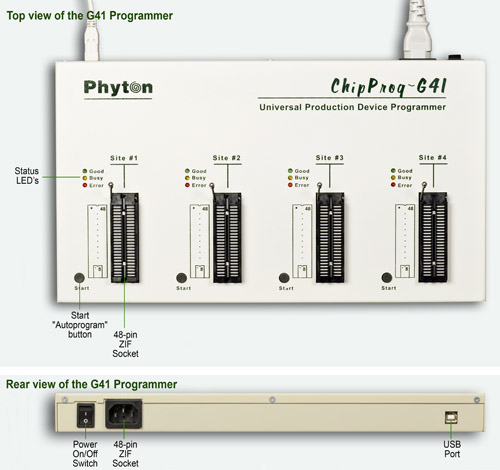

Product picture

Features
  • Extremely fast! Programs and verifies programming of 1Gb NAND flash memory device for 23 s! Targeted at working with large density NAND and NOR flash memory devices. See the speed comparison between different programmers.
  • Based on four concurrently and independently working Phyton ChipProg-481 device programmers
  • Supports parallel & serial EPROM & EEPROM; microcontrollers, and PAL/PALCE/GAL/PEEL/PLD devices
  • Programs all DIP-packed device from 6 to 48 pin via 48-pin pin ZIF DIP sockets - no additional adapters are required
  • Optional adapters for programming devices in PLCC, SOIC, SSOP, QFP, BGA, QFN, SON and other packages are available
  • Supports in-system programming for the devices allowing the ISP (ICP) mode via special cables-adapters
  • Communicate to a PC via a single USB 2.0 port
  • Each site has its own 'Start' button for fast manual operations
  • Device auto-detect start mode initiates programming after the target device is inserted into the socket
  • Works under control of Windows XP and Windows-7 32- and 64-bit versions. Easy-to-use and intuitive user interface
  • Can be controlled from a host computer GUI or remotely via a special Application Control Interface (ACI)
  • Supports loading files of all popular formats: Intel HEX, Binary, Motorola S-format, POF, JEDEC, PRG, ASCII Hex & Octal, etc.
  • Built-in editor supports sophisticated operations with blocks
  • Vpp and other parameters precise adjustment via the software settings
  • Splits files to multiple images
  • Embedded script language for automation of routine operations
  • Serialization of the programmed devices by writing a serial number into a specified target memory location
  • Calculation of the control sum with capability to write it into a specified target memory location
  • A unique signature can be written into a specified target memory location
  • Advanced self-diagnostic start-up routine that check the target device reliable contact in the programming socket
  • Incorrect device insertion check and overcurrent protection; automatically detects bad contacts before starting any operation
  • Lifetime free software updates via Web
  • Has a built-in universal 110-240VAC power adapter; US, European, UK and Australian power cables are available
  • Quite prortable for the tools of this class - dimensions: 360x155x33 mm (14-1/8 x 6-1/6 x 1-3/8 inch)
  • See also other multi-programming solutions based on ChipProg-481, ChipProg-48, ChipProg-40 and ChipProg-ISP tools

4-channel gang programming

The ChipProg-G41 programmer features 4 completely independent 'Programming Modules' which are networked back to a controlling PC via a high-speed USB link. This allows the G4 to program 4 devices simultaneouly with either the same or different data. It also means that there is loading between the channels and a problem with an IC on one channel will not affect a device on another channel.

  • Completely independent Programming Module per channel
  • All power, Vpp and signal connections are independent per channel
  • Independent PASS / BUSY / FAIL indicators per channel
  • A 'START' switch on each channel can be used to manually start a selected channel.
  • If one IC fails to program, this does not affect the other programming channels
  • In case of a problem, a complete channel can be swapped out with a new Programming Module.

48-pin ZIF Socket

The ChipProg-G41 programmer features a 48-pin DIL (Dual-In-Line) ZIF (Zero Insertion Force) socket with 48 independent pin-drivers. The 48-pin ZIF socket allows the programmer to support many more devices than the more traditional 40-pin programmers on the market including high-density FLASH and EEPROM Memory devices which are common in 48-pin TSOP packages. Many of the more recent high-integration microcontrollers also require more than 40pins for programming. A suitable Package Adaptor is required to convert the package of the target chip to the DIL equivalent.

Device Support Overview

The ChipProg-G41 programmer supports a wide range of programmable ICs including:

  • Microcontrollers: 8051, PIC, AVR, XMEGA, ARM, MSP430 etc
  • Parallel EEPROM Memories
  • Serial EEPROM Memories
  • PAL/PALCE/GAL/PEEL/PLD devices
  • In-System Programmable microcontrollers using additional ISP cable

The device support is updated regularly but Phyton cannot guarantee to add all new devices.

Optional Socket Adaptors

A comprehensive range of production quality Socket Adaptors is available for the ChipProg-G41 programmer to support many different package types including:

  • PSOP, TSOP
  • TQFP, PQFP
  • SOP, SOIC
  • BGA, PBGA
  • ISP

Many adaptors are available as either a "Clamshell" version or a "Open-top Push-type" adaptor.

Powerful PC Driver Software

The ChipProg-G41 programmer is controlled by a powerful software utility running on the PC. This utility controls / sequences all 4 programming channels allowing for efficient production programming.

Software features:

  • PC software works under control of Windows 9x/2000/NT/XP/Vista
  • All 4 x Programming Modules controlled via a single USB 2.0 interface to the PC
  • Easy-to-use and intuitive user interface
  • Supports loading files of all popular formats: Intel HEX, Binary, Motorola S-format, POF, JEDEC, PRG, ASCII Hex & Octal, etc.
  • Built-in editor supports sophisticated operations with blocks
  • Vpp and other parameters precise adjustment via the software settings
  • Splits files to multiple images
  • Embedded script language for automation of routine operations
  • Serialization of the programmed devices by writing a serial number into a specified target memory location
  • Calculation of the control sum with capability to write it into a specified target memory location
  • A unique signature can be written into a specified target memory location
  • Technical specifications

    • Number of programming sockets: 4
    • PC Interface: USB 2.0
    • ZIF Socket: 48-pin DIL
    • Built-in microcontroller, Fclk: Yes, 32-bit, 60 MHz
    • Built-in FPGA, Fclk: Yes, up to 100 MHz
    • Logical pin drivers: Universal, 1.8V to 5.5V
    • Analog drivers: Can drive any pin, 10-bit DAC
    • Adjustability of the write impulses edges’ slopes: Yes
    • Capability to support new target devices: Unlimited
    • In-system programming  capability: Yes - with additional cables
    • Chip insertion auto detect capability: Yes
    • Project management by the software shell: Yes
    • Serialization of the programmed devices: Yes
    • Writing signatures into  the programmed devices:   Yes
    • Logging programming sessions to files: Yes
    • Host computer and operation system: IBM PC, Windows
      2000 / XP / Vista
      / Windows 7
    • Power Supply input: 110-240VAC mains via IEC plug / cable
    • Dimensions: 435 x175 x 45 mm (17x7x1¾ inch)

    Approvals
    • CE compliant
    • FCC compliant
    • RoHS compliant




    Device Support (by family)



    This product supports devices from the families listed below:




    Please note:
    Not all devices may be supported within a family.
    Please see the Detailed Device Support List for a list of all devices which the product supports.




    Ordering Information...




    Phyton ChipProg-G41 - Universal 4-channel Gang Programmer for Manufacturing
    The Phyton ChipProg-G41 is based on four concurrently working Phyton ChipProg-48 programmers. It supports parallel & serial EPROM & EEPROM; microcontrollers, and PAL/PALCE/GAL/PEEL/PLD devices.
    Manufacturer:  Phyton
    Order Code:  PHY-CHIPPROG-G41
    Quantity Price (GBP) [Excl. VAT]
    1 and above
    2,426.48

    Availability:
    0 in stock
    7 days delivery
    Product Information
    Product:  Phyton ChipProg-G41 - Universal 4-channel Gang Programmer for Manufacturing
    Manufacturer:  Phyton
    Order Code:  PHY-CHIPPROG-G41
    Availability:  0 in stock
    7 days delivery
    Price:   2,426.48 (GBP)
     [Excl. VAT]
