ISP-PRO V5 Production Software Suite





The ‘ISP-PRO’ software suite is a dedicated Windows application which is used to control Equinox ISP programmers in a production programming environment. The software is capable of controlling up to 32 asynchronous programming channels from a single PC COM port. ‘ISP-PRO’ can be run as a completely self-contained standalone application where each programming channel is sequenced in real-time via a specially compiled ‘Programming Script’. It can also be run as a ‘Slave application’ where it is controlled by an external ‘Remote Application’.

The software features an ‘Interface Database’ which allows each programming channel to be independently controlled from a custom Remote Application written in eg. Labview, Visual Basic, C++. The results of every programming operation are logged to this database giving a full history of exactly what happened and when.

Software Downloads Software Upgrades Release Note



Features



Standard Features

Production Software Supports up to 32 Programming Scripts Database
Unique Data Barcode Scanning Barcode Printing Security
Run Target Standalone Mode Calibration

Supported Programmers

Click on the picture of a programmer to view the full programmer description page.

ISPnano Header
SingleChannel_Header

ISPnanoS3 ISPnanoS3-ATE ISPnanoS4-ATE Integrated Programming Fixture

GANG_Header

ISPnano-GANG2 ISPnano-S3 GANG4 ISPnano-S3 GANG6 ISPnano-S3 GANG8

Multiplexed_Header

ISPnano-MUX ISPnano-MUX4 ISPnano-MUX8

PPM4

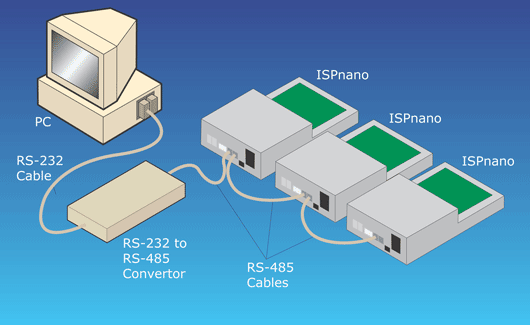

Gang Programming Operation

Gang Programming

  • Up to 32 x ‘ISPnano Programming Modules’ can be networked together to a single PC via an RS-485 bus
  • Each ‘ISPnano Programming Modules’ is capable of asynchronously programming a Target Device (i.e. all programmers operate independently)
  • Each programmer is given a unique ‘Communications Address’
  • An RS-232 to RS-485 convertor is required to interface the PPM4’s to the PC RS-232 port
  • The programmers are all controlled via the ISP-PRO or ConsoleEDS utilities running on the Supervisor PC

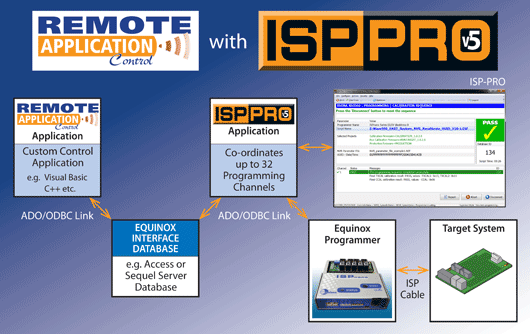

Control Methods

Control Methods

  • A custom Remote Application written in e.g. Visual Basic, C++, c#, Delphi can control up to 32 programmers concurrently
  • Supports remote ‘Programming Script’ selection & execution
  • Supports writing / reading of unique data such as serial numbers, MAC addresses and calibration data
  • Every programming operation is logged to a database (records PASS / FAIL, diagnostics etc per board)
  • Supports Barcode Scanning of label on Target System + programming of relevant serial number




Ordering Information...




ISP-PRO V5 Production Software Suite

Manufacturer:  Equinox Technologies
Order Code:  ISP-PRO V5
Quantity Price (GBP) [Excl. VAT]
1 and above 1,995.00

Availability:
0 in stock
7 days delivery
Product Information
Product:  ISP-PRO V5 Production Software Suite
Manufacturer:  Equinox Technologies
Order Code:  ISP-PRO V5
Availability:  0 in stock
7 days delivery
Price:   1,995.00 (GBP)
 [Excl. VAT]


Downloads
Download View Downloads for this Product
