ISPnano-MUX Family - Multiplexed ISP Programming Systems - OVERVIEW





The "ISPnano-MUX8" is a state-of-the-art production In-System Programming (ISP) system designed to sequentially program up to 8 target devices. The system is aimed at production programming of PCB panels where each PCB has a programmable IC on it.



The programmer uses a single integrated 'ISPnano programmer' which is then multiplexed sequentially to each UUT on the PCB panel. This allows the system to sequentially program up to 8 individual UUTs, one after the other.

The sequential multiplexing approach supports programming of only one UUT at a time which means that the programming time for a panel of PCBs which will be significantly longer than if an individual programmer was used for each channel. However, for many programming applications, the programming time is very short anyway or is not the most important factor in the system, so this multiplexed approach would work very well.

The programming signals for each programming channel are multiplexed using high-quality analogue switches to each UUT in turn. The power signals (TVCC, VPP and EXT-VCC) are all individually switched to each UUT using relays. This approach allows the power to each UUT to be individually controlled and measured and means that only a single UUT is then powered on at any point in time making it possible to detect short circuits and other faults for an individual UUT.

The ISPnano-MUX8 programmer is capable of operating in 'Standalone Mode' where any one of 64 independent 'Programming Projects' can be executed via a remote command.  The programmer also features a 4-wire TTL Remote Control interface making it ideal for interfacing to any ATE or In-Circuit Tester (ICT). A special 'Start Signal' can be used to detect when a Test Fixture lid has been closed and thereby automatically start a programming operation.

Device SupportDownload PicNewsSoftware UpgradesDevice Libraries

Return to ISPnano Overview




Features



Main Features
Programming Scenario
ISPnano-MUX2 - 2-channel multiplexed ISP system
ISPnano-MUX4 - 4-channel multiplexed ISP system
ISPnano-MUX8 - 8-channel multiplexed ISP system
Programmer Control Methods
Device Manufacturers Supported
Device Libraries
Device Support

Main Features

  • Available as 2 / 4 or 8 channel multiplexed programming system
  • Supports sequential programming of 2 / 4 or 8 UUTs (depending on programmer model)
  • A single 'ISPnano Series 3' programmer is multiplexed sequentially to up to 8 individual Target Boards (UUTs)
  • All programming signals are multiplexed to each UUT using high-quality analogue switches
  • All programming signals are fully ESD and over-voltage protected
  • All passive / power signals (Target VCC, Target Vpp and EXT-VCC power signals) are switched via individual high-quality relays to each UUT
  • Power is always switched off to the target UUT before switching to the next UUT thus providing very long relay contact life
  • Each programming channel features its own interchangeable 'I/O Connector Module' with relays and any custom target connectors
  • Status indicators include - current channel being programmed and PASS / BUSY / FAIL
  • Controllable via a PC using the Equinox EDS, ConsoleEDS or ISP-PRO software utilities
  • Channel multiplexer control can be controlled either via the PC or a remote system

Programming Scenario

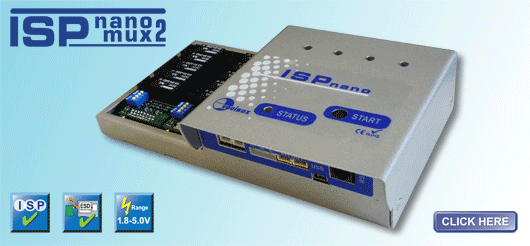

ISPnano-MUX2 - 2-channel multiplexed ISP system

MUX2

Click HERE to view the 'ISPnano-MUX2' programmer page.

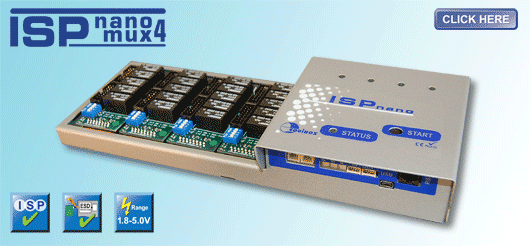

ISPnano-MUX4 - 4-channel multiplexed ISP system

MUX4

Click HERE to view the 'ISPnano-MUX4' programmer page.

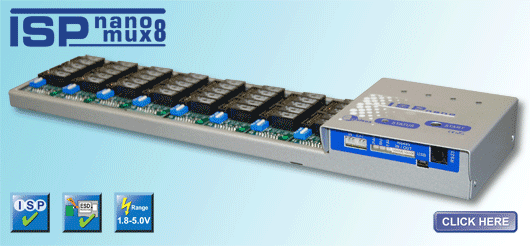

ISPnano-MUX8 - 8-channel multiplexed ISP system

MUX8

Click HERE to view the 'ISPnano-MUX8' programmer page.

Programmer Control Methods

Device Manufacturers Supported

Device Libraries

To keep the overall system cost as low as possible, the ISPnano programmers do not come with any 'Device support' enabled as standard. Please click here for a list of available 'Device Libraries' which can be purchased as add-ons to the programmer.

Click HERE to view the 'ISPnano Device Support Libraries Overview page'




Device Support (by manufacturer)



This product supports devices from the manufacturers listed below:

Atmel Corporation
Exel Semiconductor (Rohm)
Holtek Semiconductor
IC Microsystems
ISSI
Microchip
NXP (Philips)
ON Semiconductors (Catalyst)
Ramtron
Rohm
Seiko Instruments
Sigma Designs
STMicroelectronics
Xicor



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.
