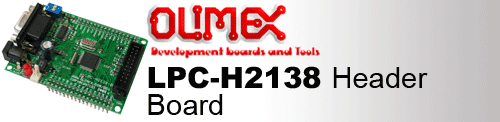

Olimex - LPC-H2138 HEADER BOARD FOR LPC2138 ARM7TDMI-S MICROCONTROLLER




Olimex - LPC-H2138 HEADER BOARD FOR LPC2138 ARM7TDMI-S MICROCONTROLLER



Features



Feature
  • MCU: LPC2138 16/32 bit ARM7TDMI-S with 512K Bytes Program Flash, 32K Bytes RAM, RTC, 8x 10 bit ADC 2.44 uS, 2x UARTs, I2C, SPI, 2x 32bit TIMERS, 8x CCR, 6x PWM, WDT, 5V tolerant I/O, up to 60MHz operation
  • standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • on board voltage regulator 3.3V with up to 800mA current
  • single power supply: 6V AC or DC required
  • power supply LED
  • status LED
  • power supply filtering capacitor
  • two channel RS232 interface
  • RESET circuit with exterman control of Philips ISP utility via RS232
  • RESET button
  • DBG jumper for JTAG enable
  • BSL jumper for bootloader enable
  • JRST jumper for enable/disable external RESET vontrol by RS232
  • 14.7456 Mhz crystal on socket, allow easy communication setup (4x PLL = 58,9824 Mhz CPU clock)
  • 32768 Hz crystal and RTC backup battery connector
  • extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 76x55 mm (3.0x2.2")
  • space between the pin rows: 48.26 mm (1.9")




Device Support (by family)



This product supports devices from the families listed below:

NXP (Philips):
  • NXP (Philips) LPC2xxx (ARM7) Microcontroller Family



Device Support (by manufacturer / programming algorithm)




Philips Semiconductor

JTAG - In System Programming (ISP) via JTAG Debug Port (chargeable upgrade for Equinox Programmers):
NXP (Philips) LPC2xxx (ARM7) Microcontroller Family:
LPC2138



Ordering Information...




Olimex - LPC-H2138 HEADER BOARD FOR LPC2138 ARM7TDMI-S MICROCONTROLLER
Olimex - LPC-H2138 HEADER BOARD FOR LPC2138 ARM7TDMI-S MICROCONTROLLER
Manufacturer:  Olimex
Order Code:  OLI-LPC-H2138
Quantity Price (GBP) [Excl. VAT]
1 - 4
43.48
5 and above
40.22

Availability:
4 in stock




Product Information
Product:  Olimex - LPC-H2138 HEADER BOARD FOR LPC2138 ARM7TDMI-S MICROCONTROLLER
Manufacturer:  Olimex
Order Code:  OLI-LPC-H2138
Availability:  4 in stock
Price:   43.48 (GBP)
 [Excl. VAT]
