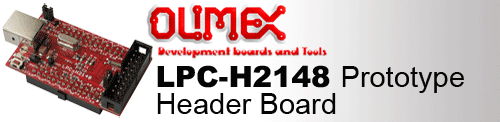

Olimex - LPC-H2148 PROTOTYPE HEADER BOARD FOR LPC2148 ARM7TDMI-S MICROCONT




Olimex - LPC-H2148 PROTOTYPE HEADER BOARD FOR LPC2148 ARM7TDMI-S MICROCONTROLLER



Features



Feature
  • MCU: LPC2148 16/32 bit ARM7TDMI-S with 512K Bytes Program Flash, 42K Bytes RAM, USB 2.0, RTC, 10 bit ADC 2.44 uS, 2x UARTs, 2x I2C, SPI, 2x 32bit TIMERS, 6x PWM, 8x CCR, 1x DAC, WDT, 5V tolerant I/O, up to 60MHz operation
  • standard JTAG connector with ARM 2x10 pin layout for programming/debugging with ARM-JTAG
  • Perfect solution for developing USB peripherials
  • USB connector, USB link LED
  • status LED
  • power supply LED
  • on board voltage regulator 3.3V with up to 800mA current
  • single power supply: takes power from USB or extension socket pin
  • power supply LED
  • power supply filtering capacitor
  • RESET circuit
  • RESET button
  • 12 Mhz crystal on socket
  • 32768 Hz crystal and RTC backup battery connector
  • extension headers for all uC ports
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
  • Dimensions: 110 x 100 mm (4.3 x 3.9 ")
  • Distance between the Extension headers: 25.4 mm (1")




Device Support (by family)



This product supports devices from the families listed below:

NXP (Philips):
  • NXP (Philips) LPC2xxx (ARM7) Microcontroller Family



Device Support (by manufacturer / programming algorithm)




Philips Semiconductor

JTAG - In System Programming (ISP) via JTAG Debug Port (chargeable upgrade for Equinox Programmers):
NXP (Philips) LPC2xxx (ARM7) Microcontroller Family:
LPC2148



Ordering Information...




Olimex - LPC-H2148 PROTOTYPE HEADER BOARD FOR LPC2148 ARM7TDMI-S MICROCONT
Olimex - LPC-H2148 PROTOTYPE HEADER BOARD FOR LPC2148 ARM7TDMI-S MICROCONTROLLER
Manufacturer:  Olimex
Order Code:  OLI-LPC-H2148
Quantity Price (GBP) [Excl. VAT]
1 - 4
33.48
5 and above
30.13

Availability:
3 in stock




Product Information
Product:  Olimex - LPC-H2148 PROTOTYPE HEADER BOARD FOR LPC2148 ARM7TDMI-S MICROCONT
Manufacturer:  Olimex
Order Code:  OLI-LPC-H2148
Availability:  3 in stock
Price:   33.48 (GBP)
 [Excl. VAT]
