Single and Multiple Programmer |
|
|

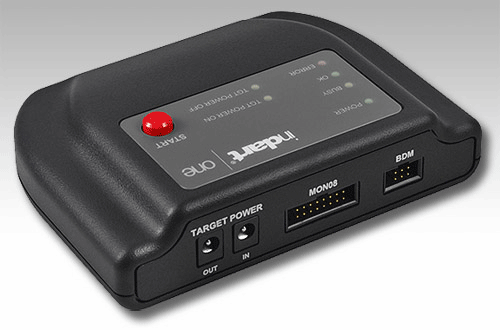

inDART-One is a full-featured programmer, thanks to the provided DataBlaze programming utility. Additionally, up to 32 inDART-One instruments can be connected (using USB hubs) to the same PC, allowing for multiple (gang) programming sessions. A specific multiple programming utility, MultiBlaze, is provided.
|
|
Main Features |
|
- In-circuit debugging
-
Real-time code execution
-
Built-in FLASH programmer
-
In-circuit programming and debugging through standard BDM- and MON08- compatible interfaces
-
VDD In and VDD Out connectors for target power supply handling (automatic or manual)
|
|
Operating Features |
|
- Working frequency up to the target microcontroller’s maximum
-
All target microcontroller voltages supported
-
Jumperless hardware mode setting
-
Powered by the USB connector
|
|
HC08 Fast Programming Algorithms |
|
|
Fast HC08 programming algorithms reduce significantly the amount of time needed to program HC08 devices. Fast programming algorithms can be used both in single and multiple programming. The table below shows fast programming times for some HC08 devices.
| Device |
Mem Size |
Programming Times |
| MC68HC908GP32 |
32KB
fCPU=4MHz |
Program = 1.5s
Program + Verify = 2.9s |
| MC68HC908QB8 |
8KB
fCPU=4MHz |
Program = 1.1s
Program + Trim + Verify = 1.5s |
| MC68HC908AZ60A |
60KB
fCPU=4MHz |
Program = 2.7s
Program + Verify = 5.4s | Fast programming algorithms are device-specific and must be purchased separately. Please contact Equinox for more information.
|
|
Programming Library |
|
|
inDART-One can be fully controlled via the provided IPL-One Programming Library. The IPL-One Programming Library is a DLL which includes all of the low-level functions that allows you to set up the instrument and perform all of the programming commands and functions of the DataBlaze and MultiBlaze programming utilities from within your own Windows application. The IPL-One Programming Library contains C written routines, and can be used to interface the instrument from within, for example, a Microsoft Visual C or Visual Basic application, as well as any other programming language that supports the DLL mechanism.
|
|
In-Circuit Debugger |
|
|
inDART-One takes advantage of the CodeWarrior Development Studio Special Edition (which groups an Editor, Assembler, C Compiler and Debugger) and the Freescale MON08 and BDM interfaces, which allow the download and debug of the user application into the target microcontroller’s FLASH memory. Together with CodeWarrior, inDART-One provides you with everything you need to write, compile, download, in-circuit emulate and debug user code. Full-speed program execution allows you to perform hardware and software testing in real time. inDART-One is connected to the host PC through a USB port.
|
|
Additional Debuggers Supported |
|
|
inDART-One (S08, S12 and S12X families) is also supported by the NoICE debugger (http://www.noicedebugger.com).
|
|
Debugging Capabilities |
|
- Reset, Start, Stop, Single Step, Step Over, Step Out
-
Hardware breakpoints (number varies depending on device)
-
Trace (on some devices)
-
Full handling of target’s on-chip debug peripheral
-
Real-time refresh of RAM, variables, registers and peripherals
|
|
Code Warrior Development Tools |
|
|
The following 'Code Warrior' development tools are included with the programmer:
- Editor
- Assembler
- C Compiler (code size limited)
- Linker
- Source level and symbolic debugger
|
|
Programming Capabilities |
|
- Blank check, erase, program, read, verify, oscillator trimming
-
Single programmer (through the DataBlaze interface)
-
Gang programmer (through the MultiBlaze interface)
-
Optional ultra-fast programming algorithms
|
| |
This product has been discontinued. Please refer to the Replacement Product instead:
