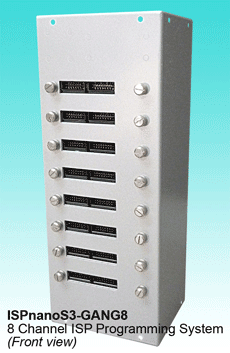

ISPnano Series 3 - GANG8 System - 8-channel production ISP programming system





The ISPnanoS3-GANG8 is an 8-channel gang programming system made up of 8 independent ISPnano Series 3 programmers. It is capable of programming 8 target systems (DUTs) concurrently with each channel completely independent from the other channels.

The ISPnanoS3-GANG8 system is designed for programming multi-PCB panels made up of PCBs each with a programmable microcontroller or memory device.

The ISPnanoS3-GANG8 is a scaleable ISP programming solution which can be expanded from 8 channels up to 32 channels by simply adding more programmers to the network.

Device Support Download Pic News Device Libraries Return to ISPnano Overview ISPnano-S3 Product Leaflet






Features



Main Features
Compact ergonomic enclosure
Programmer – Target I/O Signals
Front Panel view
Target Connectors
Programmer Power and Communications Connectors
Programmer Power Supplies
Host Control connectivity (Communications Ports)
Gang ISP Programming / network programming support
Standalone Programming Operation (no PC)
Programmer Control Methods
Device Manufacturers Supported
Device Libraries
How to change a programmer
Equinox Warranty for ISPnano Production Programmers
Device Support

Main Features

  • Compact physical size ideal for integration into ATE / Test Fixtures
    • Programmer measures only 10.7 cm x 8.0 cm x 2.6 cm and has ergonomic design to supports the maximum packing density.
  • Gang ISP Programmer Configuration / network programming support
    • Up to 32 programmers can be controlled from a single PC using the RS485 bus.
    • Compact size and network option allows up to 32 programmers to be mounted even in small fixtures.
  • Wide ranging ISP Device Support capability
    Supports In-System Programming (ISP) of many popular FLASH Microcontrollers, Serial EEPROM and serial FLASH Memories
  • High-speed ISP Programming
    Optimised algorithms, on-board project data storage and high-speed line-driver circuitry delivers the fastest possible programming times
  • Supports most ISP Protocols
    SPI, JTAG, JTAG Chain, I2C (2-wire), SCI, BDM, XMEGA PDI, ATtiny TPI
  • High-speed JTAG port
    Supports high-speed JTAG programming of Atmel AVR, AT91SAM7 (ARM7), and XMEGA AVR microcontrollers
  • High-speed SPI port
    Supports full range of SPI speeds from 10 Hz up to 4 MHz
  • High-speed XMEGA PDI port
    Supports high-speed programming of Atmel ATxmega AVR microcontrollers via the 2-wire PDI Interface.
  • High-speed ATtiny TPI port
    Supports high-speed programming of Atmel ATtiny AVR microcontrollers via the 2-wire TPI Interface.
  • Dedicated 2-wire I2C serial port with independent drive circuitry
    Supports high-speed I2C programming of Serial EEPROMs, F-RAM memories and RTC ICs.
  • Fully ESD and Over-voltage protected I/O
    All Target I/O pins feature both ESD and over-voltage protection.
  • Supports programming at Target Voltages down to 1.8V
    An optimised driver circuit delivers fast clean programming waveforms from 1.8 to 5.0V.
  • Excellent Host Control connectivity
    •
    1 x High-speed USB Port
    • 1 x RS232 Serial Port
    • 1 x RS485 IN/OUT port – supports up to 32 programmers on an RS485 network
    • 4-wire TTL Remote Control Port
    • Remote Keypad / Display (ideal for standalone control in a Test Fixture)
  • Standalone Operation
    Programmer can operate in ‘Standalone Mode’ i.e. without PC Control.
    • Programmer can be controlled via [START] button, 4-wire TTL Remote control Port, Target Detection or Lid switch detection control methods or Remote Keypad / Display.
  • Multiple Programmer Controlled Target Power Supplies
    • Target Vcc Supply: 1.8 to 5.0V @ 300mA
    • Target Vpp Supply: 6.5V to 13.5V @ 100mA
    • External Vcc Voltage Supply (1.5V - 24.0V) switched to Target System
  • Programmer controlled Target Discharge Circuit
    The programmer can automatically discharge any residual charge on the Target System to guarantee that the Target Vcc reaches 0V.
  • Simple ATE / Test Fixture Integration
    Designed to interface to any ATE, ICT or Test Fixture
  • Special ATE version available with RELAY isolation (option)
    All programmer ISP and power signals are galvanically isolated via relays.
  • Firmware upgradeable
    New algorithms and features can be added via a simple firmware upgrade.
  • Compact ergonomic enclosure

    • Programmer measures only 10.7 cm x 8.0 cm x 2.6 cm
    • Ergonomic design supports the maximum packing density of programmers
    • Ideal for integrating multiple programmers into Test Fixtures for programming PCB Panels.

    Programmer – Target I/O Signals

    The ISPnano features the following programmable signal lines which interface the programmer and the Target IC(s) to be programmed on the Target System:
    • 5 x Programmable Input / Output lines
    • 1 x Programmable Output only line
    •
    1 x Dedicated I2C (Two Wire Interface) port
    •
    1 x Dedicated RESET pin with user-defineable push-pull control
    •
    1 x Programmable 32.771 kHz Oscillator Output for Oscillator Calibration on Programmer I/O1 pin

    Front Panel view

    Target Connectors

    Programmer Power and Communications Connectors

    #

    Connector Name

    Description / comment

    1

    DC Power Input

    DC Power Input to power the programmer

    2

    EXTERNAL TARGET VCC INPUT

    EXTERNAL TARGET VCC INPUT

    3

    Programmer STATUS LEDs

    Programmer ‘Status’ LEDs

    4

    RS485 Ports

    RS485 Ports (1) + (2) - Serial Communications Ports

    5

    USB

    USB Port (mini-USB connector)

    6

    RS232 Port (2)
    or Remote Display Keypad

    RS232 Port (2) - Serial Communications Port

    Programmer Power Supplies

    The ISPnano features the following on-board power supplies:
    •
    1 x Programmable Target Vcc Supply: 1.2 - 5.0V @ 300mA
    • 1 x Programmable Target Vpp Supply: 5.8 - 13.5V @ 100mA
    • 1 x External Vcc Voltage Supply (1.2V - 24.0V) switched to Target System

    Power Supply features:
    • Wide power supply input voltage range: 9.0V to 24.0V
    • Short-circuit protected outputs
    • Fast rise-time with enhanced current pumping capability to fast charge any capacitance on the Target System.
    • Each power supply output (Vcc and Vpp) can be user-calibrated to a very accurate "spot voltage"
    • Switchable Target Discharge Circuit - provides a fast discharge method for any capacitance on the Target System.
    • Voltage measurement - supports measurement of Target Voltage, Line Driver Voltage and one External Voltage (1.2V - 30.0V)
    • Current measurement - supports measurement of Target current on switch-on.

    Host Control connectivity (Communications Ports)

    • 1 x High-speed USB Port (mini-USB connector)
    • 1 x RS232 Serial Ports
    • 1 x RS485 IN/OUT port – supports up to 32 programmers on an RS485 network
    • 4-wire TTL Remote Control Port
    • Remote Keypad / Display (ideal for standalone control in a Test Fixture)

    Gang ISP Programming / network programming support

    Gang ISP Programming configuration is ideal for programming multiple PCB's on a 'PCB Panel'
    Up to 32 programmers can be controlled from a single PC using the RS485 Bus
    • Compact size and network option allows up to 32 programmers to be mounted even in small fixtures.



    Standalone Programming Operation (no PC)

    The ISPnano programmer is capable of operating in ‘Standalone Mode’ i.e. without PC Control. In this mode a single 'Programming Project' or a set of 'Chained Projects' can be triggered using an external event. The programmer can be triggered to start a programming sequence using any of the following methods:

    [START] button on front panel
    4-wire TTL Remote control Port (Ideal for ATE Remote Control)
    Target 'Load Sensing' Detection
    • Test Fixture 'Lid Switch Sensing' (closes to start programming)
    Remote Keypad / Display mounted on the top of the Test Fixture

    Programmer Control Methods

    Device Manufacturers Supported

    Device Libraries

    To keep the overall system cost as low as possible, the ISPnano programmer does not come with any devices supported as standard. You can then simply purchase the 'Device Libraries' you need for your application from the list below.

    Atmel
    - AVR microcontroller SPI algorithms: AT90S, AT90CAN, AT90USB, ATtiny, ATmega
    - AVR microcontroller JTAG algorithms: AT90CAN, AT90USB, ATmega
    - AT89S 8051 SPI algorithms: AT89S51/52/2051/4051/8252/8253
    - ATtiny AVR microcontroller TPI algorithms: ATtiny TPI
    - AT91SAM7 ARM microcontroller JTAG algorithms: AT91SAM7S, AT91SAM7SE, AT91SAM7X, AT91SAM7XC, AT91SAM7L, AT91SAM7A
    - ATXMEGA microcontroller PDI algorithms (Now available)

    - AT45D Serial DataFLASH algorithms (now available)

    NXP
    - LPC 21xx ARM7 algorithms:
    LPC21xx

    Zensys
    - Zensys - Z-Wave: ZW0102, ZW0201, ZW0301

    All manufacturers
    - 24xxx Serial EEPROM algorithms (all manufacturers)

    How to change a programmer

    Equinox Warranty for ISPnano Production Programmers

    Equinox Warranty




    Device Support (by manufacturer)



    This product supports devices from the manufacturers listed below:

    Atmel (Microchip)
    Exel Semiconductor (Rohm)
    Holtek Semiconductor
    IC Microsystems
    ISSI
    Microchip
    NXP (Philips)
    ON Semiconductors (Catalyst)
    Ramtron
    Rohm
    Seiko Instruments
    Sigma Designs
    STMicroelectronics
    Xicor



    Please note:
    Not all devices may be supported within a family.
    Please see the Detailed Device Support List for a list of all devices which the product supports.




    Ordering Information...




    ISPnano Series 3 - GANG8 System - 8-channel production ISP programming system
    ISPnano Series 3 - GANG8 System - 8-channel production ISP programming system
    Manufacturer:  Equinox Technologies
    Order Code:  ISPnano-S3-GANG8-RACK
    Quantity Price (GBP) [Excl. VAT]
    1 and above
    3,695.00

    Availability:
    0 in stock
    7 days delivery

    For further information about related products, please see the Overview Product.





    Product Information
    Product:  ISPnano Series 3 - GANG8 System - 8-channel production ISP programming system
    Manufacturer:  Equinox Technologies
    Order Code:  ISPnano-S3-GANG8-RACK
    Availability:  0 in stock
    7 days delivery
    Price:   3,695.00 (GBP)
     [Excl. VAT]
