ISPnano Series 3 - GANG2 System - 2-channel production ISP programming system

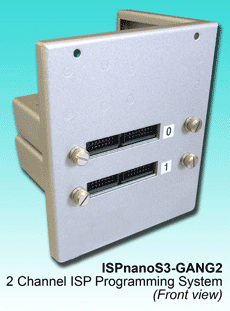

The ISPnanoS3-GANG2 is a 2-channel gang programming system made up of 2 independent ISPnano Series 3 programmers. It is capable of programming 2 target systems (DUTs) concurrently with each channel completely independent from the other channels.

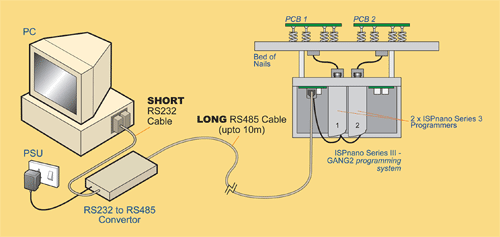

The ISPnanoS3-GANG2 system is designed for programming multi-PCB panels made up of PCBs each with a programmable microcontroller or memory device.

The ISPnanoS3-GANG2 is a scaleable ISP programming solution which can be expanded from 2 channels up to 32 channels by simply adding more programmers to the network.

Device Support Download Pic News Device Libraries Return to ISPnano Overview

ISPnano-S3 Product Leaflet





Features



Gang ISP Programming / network programming support
Main Features
Typical applications
How to change a programmer
Equinox Warranty for ISPnano Production Programmers
Device Support

Gang ISP Programming / network programming support

• Gang ISP Programming configuration is ideal for programming multiple PCB's on a 'PCB Panel'

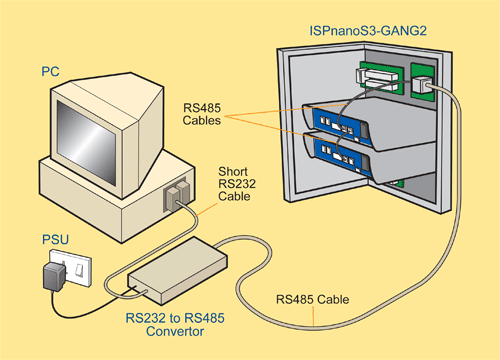

• Up to 32 programmers can be controlled from a single PC using the RS485 Bus
• Compact size and network option allows up to 32 programmers to be mounted even in small fixtures.



Main Features

  • Supports concurrent / asynchronous programming of 2 x independent Target Systems / DUTs / PCBAs
  • Each Target System (DUT) is connected to an independent programmer
  • Extremently fast parallel programming
  • A short-circuit or programming signal loading issue on one channel does not affect the other channel(s)

Typical applications

  • Concurrent / asynchronous programming of 2 x independent Target Boards (DUTs)
  • Concurrent programming / calibration of ams dual-die magnetic Position Sensor Devices e.g. AS5263, AS5262

How to change a programmer

Equinox Warranty for ISPnano Production Programmers

Equinox Warranty




Device Support (by manufacturer)



This product supports devices from the manufacturers listed below:

Atmel (Microchip)
Exel Semiconductor (Rohm)
Holtek Semiconductor
IC Microsystems
ISSI
Microchip
NXP (Philips)
ON Semiconductors (Catalyst)
Ramtron
Rohm
Seiko Instruments
Sigma Designs
STMicroelectronics
Xicor



Please note:
Not all devices may be supported within a family.
Please see the Detailed Device Support List for a list of all devices which the product supports.




Ordering Information...




ISPnano Series 3 - GANG2 System - 2-channel production ISP programming system
ISPnano Series 3 - GANG2 System - 2-channel production ISP programming system
Manufacturer:  Equinox Technologies
Order Code:  ISPnano-S3-GANG2-RACK
Quantity Price (GBP) [Excl. VAT]
1 and above
1,945.00

Availability:
0 in stock
7 days delivery

For further information about related products, please see the Overview Product.



Product Information
Product:  ISPnano Series 3 - GANG2 System - 2-channel production ISP programming system
Manufacturer:  Equinox Technologies
Order Code:  ISPnano-S3-GANG2-RACK
Availability:  0 in stock
7 days delivery
Price:   1,945.00 (GBP)
 [Excl. VAT]
