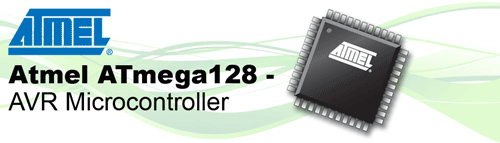

Atmel ATmega128 - AVR Microcontroller





The ATmega128 is a high-end 8-bit AVR Microcontroller featuring 128-Kbyte self-programming Flash Program Memory, 4-Kbyte SRAM, 4-Kbyte EEPROM and 8 Channel 10-bit A/D-converter. In-system Debugging and programming is supported through a JTAG interface. ISP Programming is also possible via an SPI Interface.

There are 2 versions of the chip:

  • ATmega128-16Ax  - runs at 0 - 16MHz @4.5 - 5.5V
  • ATmega128L-8Ax - runs at 0 - 8MHz @2.7 - 5.5V
    where x = Temperature range (I=Industrial)

Both versions of the chip come in a TQFP-64 package giving 53 programmable I/O pins.



Chip Versions
There are 2 different versions of this chip available as follows:

ATmega128-16AU AVR FLASH Microcontroller
128-Kbyte self-programming Flash Program Memory, 4-Kbyte SRAM, 4-Kbyte EEPROM, 8 Channel 10-bit A/D-converter. JTAG interface for on-chip-debug. 0 - 16MHz @ 4.5 - 5.5V RoHS compliant, TQFP-64 package.
Manufacturer:  Atmel Corporation
Order Code:  ATmega128-16AU
Quantity Price (GBP) [Excl. VAT]
1 - 9
14.48
10 - 24
9.24
25 and above
8.56

Availability:
81 in stock


Downloads
Download View Downloads for this Product
